A New Dimension!

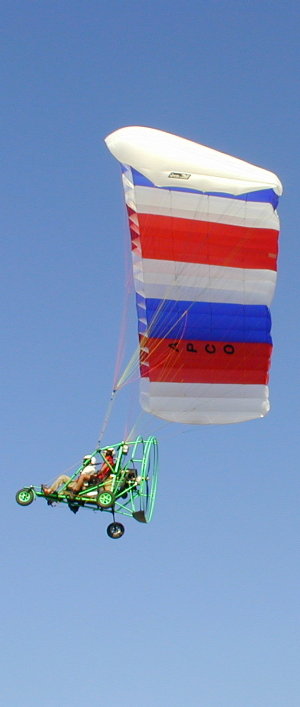

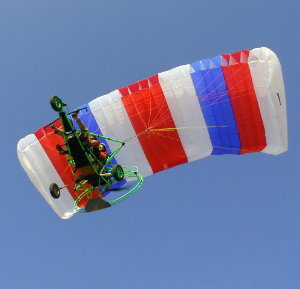

Apco Powerwing Apco has released the all new wing for PPC - the Powerwing MK IV, representing a third generation in rectangular wing design (form Apco). It is a logical evolution of the previous MK II design which was well accepted by PPC pilots. MK IV has even better handling and stability with a more coordinated turn and improved rigidity in the air, making flying more comfortable and reasuring. The wing still has the classic rectangular look and retains all the parameters and features of previous Apco powerwings.

Every pilot stepping aboard will immediately feel at home, having the extra reasuring feeling of MK IV.

Apco's Powerwings are the only PPC wings available on the market today wich is approved by world aviation standards. Apco's Powerwing was tested by ACPULS (AFNOR) in France, and passed both the shock and static strenght load tests! (Click here for more Details and Photos).

Competition Results:
1998 - Apco PW 500 was Grand Champion in the US National NAPPF Competition, piloted by Mike Harmening.

1999 - Apco PW 550 was Grand Champion in the US National NAPPF Competition, piloted by Butch Mood.

1999 - Apco PW 550 was Engine out Competition Winner Piloted by Butch Mood.

2004 - Apco PW 550 was World PPC Championship 1st Place Winner Piloted by Clyde Poser.

2004 - Apco PW 550 was World PPC Championship 2nd Place Winner Piloted by Jeff Jensen.
Apco Power Wing
  • Technical Data
    •
  • Performance
    •
  • Colours
    •
  • Certification
    •
  • Construction
    •
  • Color Order Form
    •
  • Warranty
    •
  • Accessories
    •
  • Reviews
    •
  • Manual
    •
  • Advertising
    •

    The right to change prices, specifications or equipment at any time without notice is reserved.
    Power Wing Technical Data
     Size (Area in square feet) 400 450 500 550
     Cells 25 25 26 28
     Area m2(excluding Stabilizer) 36.1 39.9 43.1 46.5
     Area (projected) m2 31.3 33.8 36.6 39.9
     Span (not incl. Stabiliser) m 10.50 10.50 10.92 11.76
     Span (projected) m 9.10 8.90 9.26 10.10
     Aspect Ratio 3.05 2.76 2.79 2.97
     Aspect Ratio (projected) 2.64 2.34 2.34 2.56
     Minimum gross weight* (payload weight in kg) 180Kg 220Kg 250Kg 275Kg
     Optimum gross weight* (payload weight in kg) 208Kg 265Kg 320Kg 345Kg
     Maximum gross weight* (payload weight in kg) 230Kg 300Kg 375Kg 400Kg
     Total Lift Capacity of Wing 750Ibs 850Ibs 1000Ibs 1100Ibs
     Load Tested: Max Load with no structural Damage 5500Ibs 5500Ibs 5500Ibs 5500Ibs
     Weight of Canopy Kg 8 9 10 11
     Root Cord m 3.44 3.80 3.95 3.95
    *Maximum gross weight (payload):
    This includes the Pilots, Fuel, Canopy, Frame and accessories.
    Power Wing Performance Data
     V-min. 27 km/h
     V-Cruise 50 km/h
     Min Sink (at optimum wing loading) 1.8m/s
    Apco Standard Color Options
    USA
    Geronimo         		Patriot
    Patriot
    Blueline
    Blueline         		Classic
    Classic
    Sunset
    Sunset         		Blaze
    Blaze
    Ice
    Ice
    The Standard colors (above) are available on shorter delivery times.

    You can design your own chute by choosing colors for each panel of your chute from our standard range of colors described below.

    Such special color orders take more time to deliver.

    Additional colors available upon request.

    When ordering please use the color number.

    Follow this link to the Special Color Order Form.

    Please Note: Due to the limitations of, and differences that occur when using this media, the Colors displayed may differ from actual colors.

    Colors no. 4, 10, 14 are more sensitive to UV rays than other colors from our range due to the fluorescent pigment in the dyestuff of the fabric. Avoid choosing them if your chute will be intensively used on high elevation and/or southern areas with a lot of sun exposure.

    Adevertizing and Sponsors Logo's can be added to customize your wing as desired.
    Colour Color Code
    White 1
    Pink
    4
    Red 6
    Orange 10
    Sun 12
    Green 14
    Turquoise 20
    Royal Blue 21
    Magenta 23
    Violet 25
    Black 27
    Power Wing Certification
    Load Test Animation
    The Power Wing Static Load Test    		 The Apco Powerwing is the only PPC wing available on the market today wich is approved by world aviation standards.

    Apco's Powerwing was tested by ACPULS (AFNOR) in France, and passed both the shock and static strenght load tests!

    Click here to view the Certificate from Afnor, or view the Load Test Graph with this link.
    Power Wing Construction and Materials
     Lines Material Diameter Strength
     Top and Safety Dyneema 2.3mm 200kg
     Lower (PW400) Super Aramid 2.2mm 220kg
     Lower Super Aramid 3.0mm 290kg
     Brake Cascades Super Aramid 1.7mm 155kg
     Steering Lines Polyester 5.0mm 450kg
     Fabric
     Sail Cloth 46gr/m2 "Zero Porosity" Ripstop Nylon
     Rib Reinforcement 180gr/m2 Mylar (Trilam)
     Warranty 3 Years / 250 hours
    Accessories
    As with all Apco Powered Parachute Wings, The PW Range is suplied standard with a robust carry bag, Line/Riser protection sleeves, and a Manual.
