An engineering masterpiece is the one that simply works.

An engineering masterpiece is the one that simply works. The Trike Pilot-Passenger Harness Set, is exactly that – a simple, straight-forward solution for any trike.
Comfortable and safe, this set, does the job in an easy to use, efficient way. Elegant in its simplicity the Trike Pilot-Passenger harnesses will answer all your needs.;

UNIVERSAL in their design the Pilot-Passenger Harnesses will fit most trikes in use today.

The Pilot-Passenger Harnesses are designed to be used as part of an integrated set. Synergized to work perfectly together.

Of course each harness can be used on its own, combined they will provide the ultimate solution.

Fly Apco – KISS the pilot!

Wikipedia: “KISS” is an acronym for – Keep It Simple, Stupid

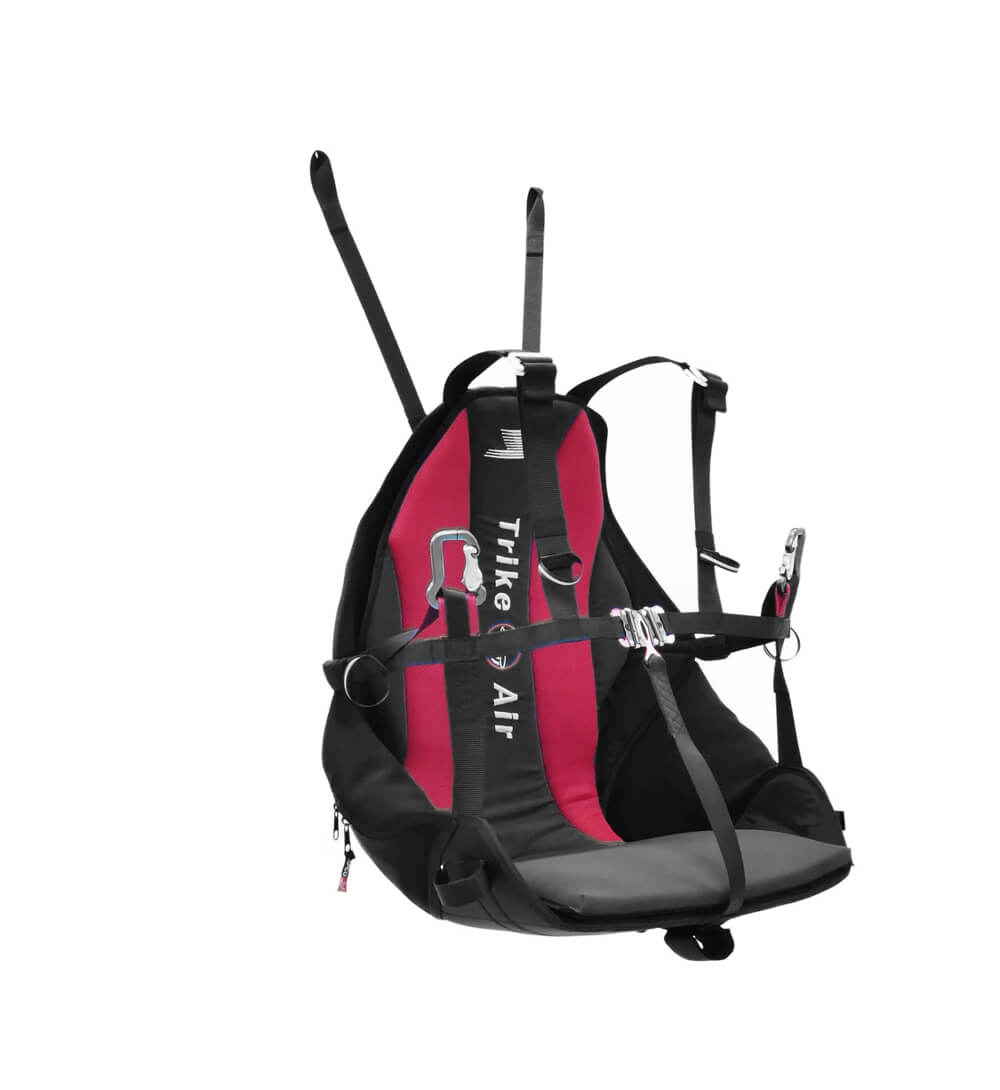

Like the matching Pilot Harness, the Passenger Harness is highly comfortable, safe and extremely simple for operation.

Universal design – the Passenger Harness has multiple connection points to connect to the trike’s frame, allowing compatability with almost any trike.

Safe – A single T-type buckle secures the passenger with minimum amount of connections. allowing for quick “No Forget” set up.

Comfort – Removable one piece seat and back cushion insures passenger comfort on the longest flights.
2 Double Side pockets envelop the passenger for added support and allow ample space with in flight accessibility.

Sizing – Full adjustability of all angles allows quick adjustment of the harness to any passenger.

Strong – Wide 40 mm polyester webbings are used to secure the passenger to the harness and the harness to the frame.

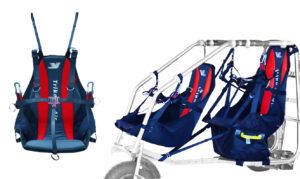

Getting in and out of harness is extremely easy. The Passenger Harness integrates together perfectly with the matching Pilot Harness but will also be perfect for most single seater trikes.

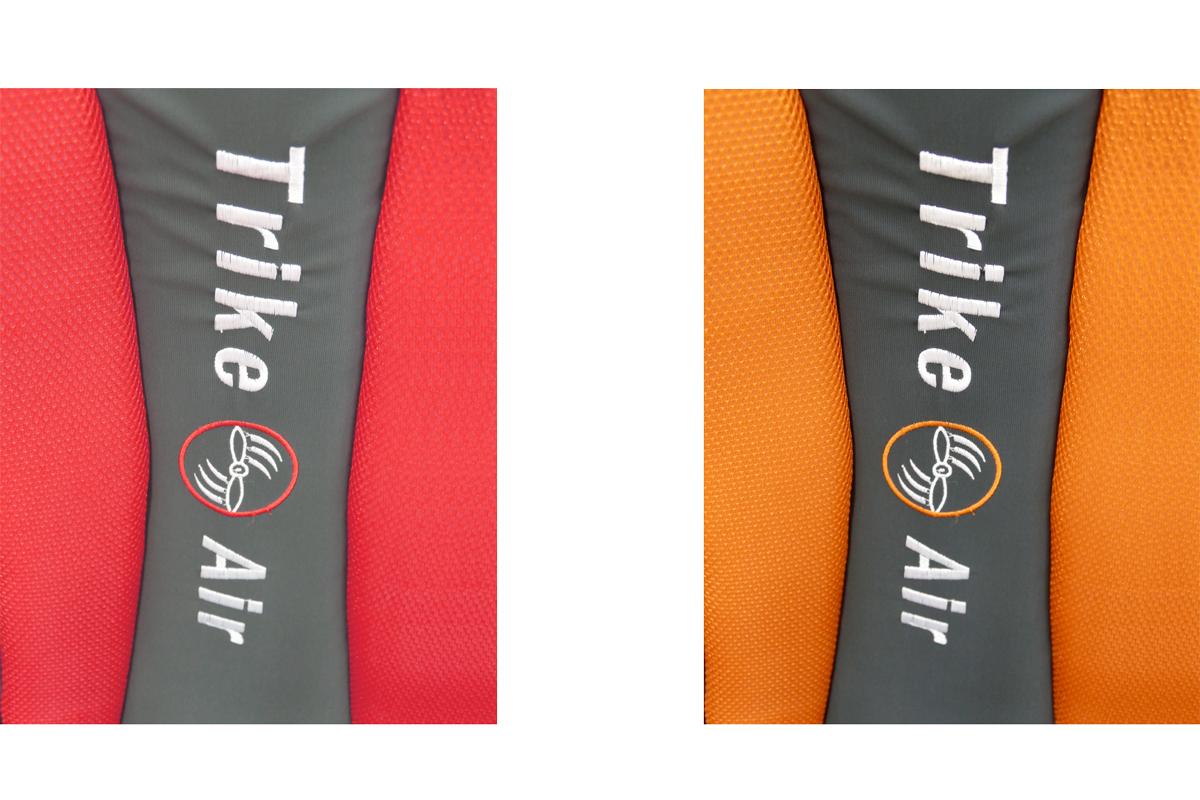

**Custom branding, colors and your logo are available for bulk orders**

0%

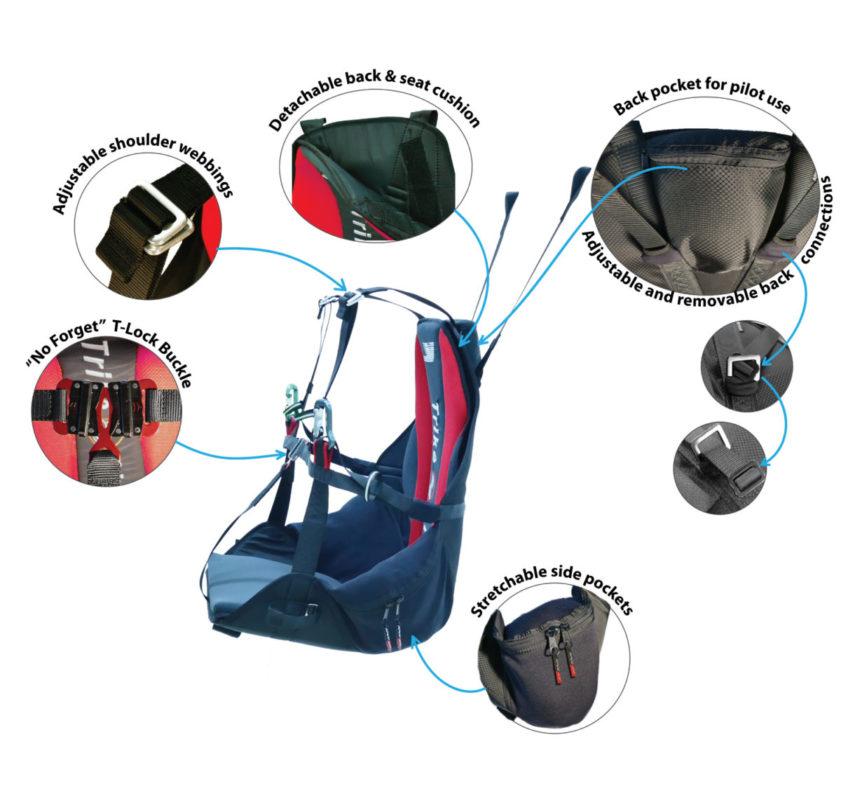

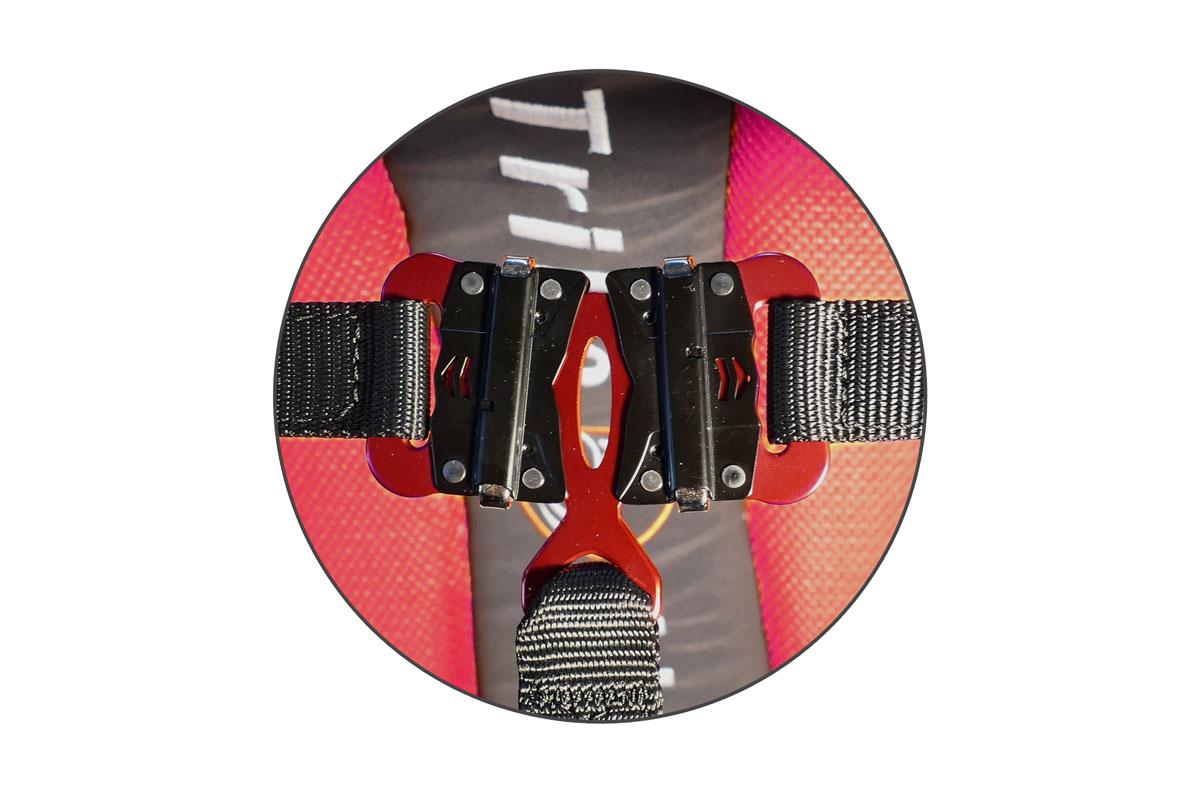

    • Super simple one click passenger buckling with T-lock center buckle.

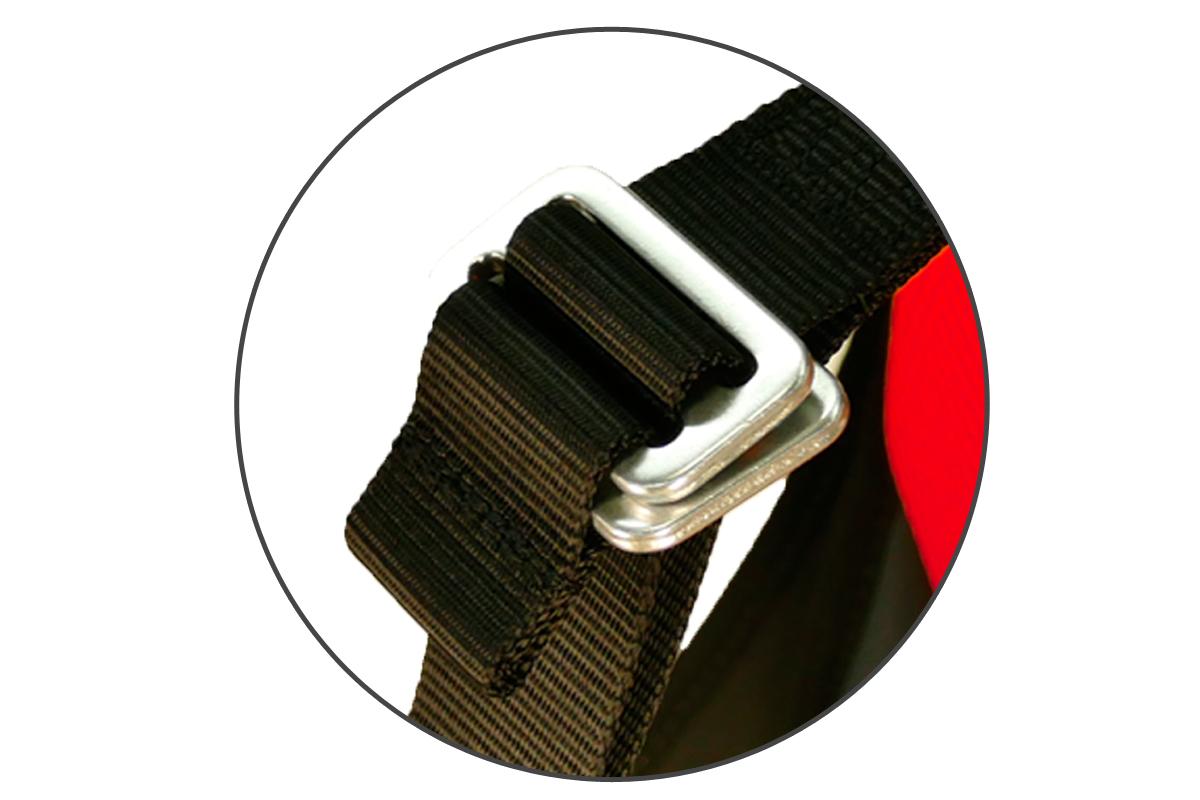

    • Shoulder support length, quick adjustment.
    • Back angle quick adjustment.
    • Rear pocket for use of the pilot as a front pocket.

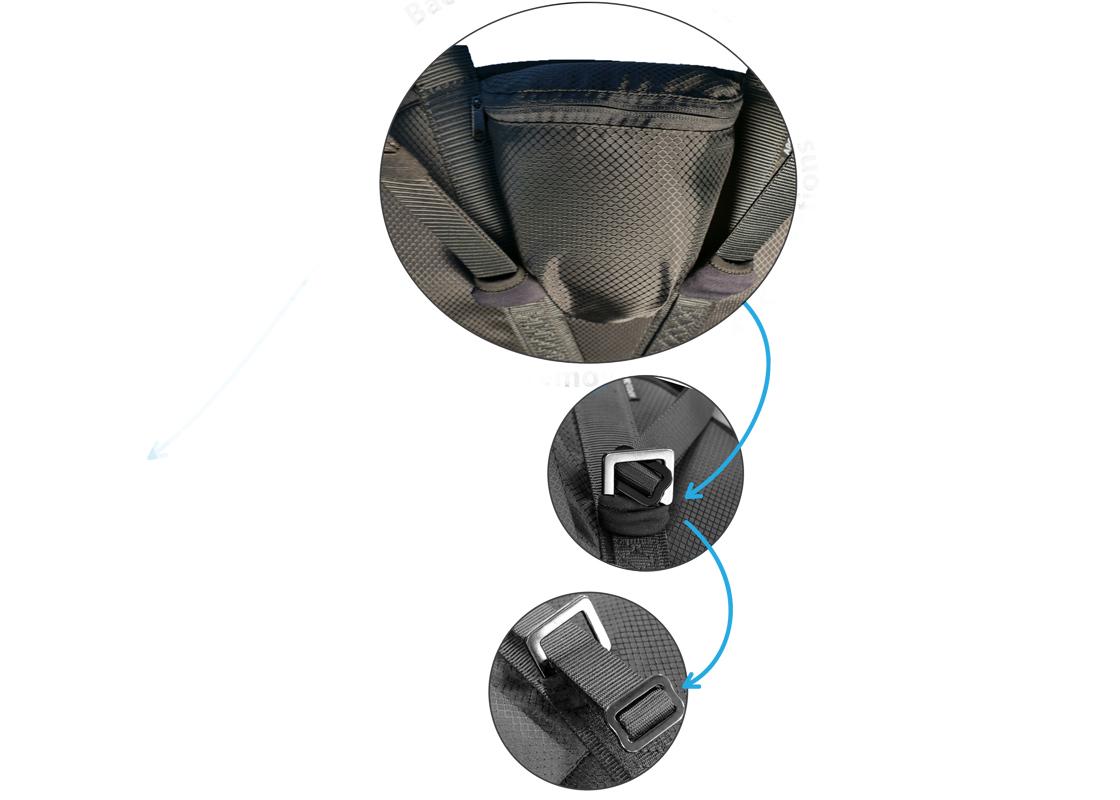

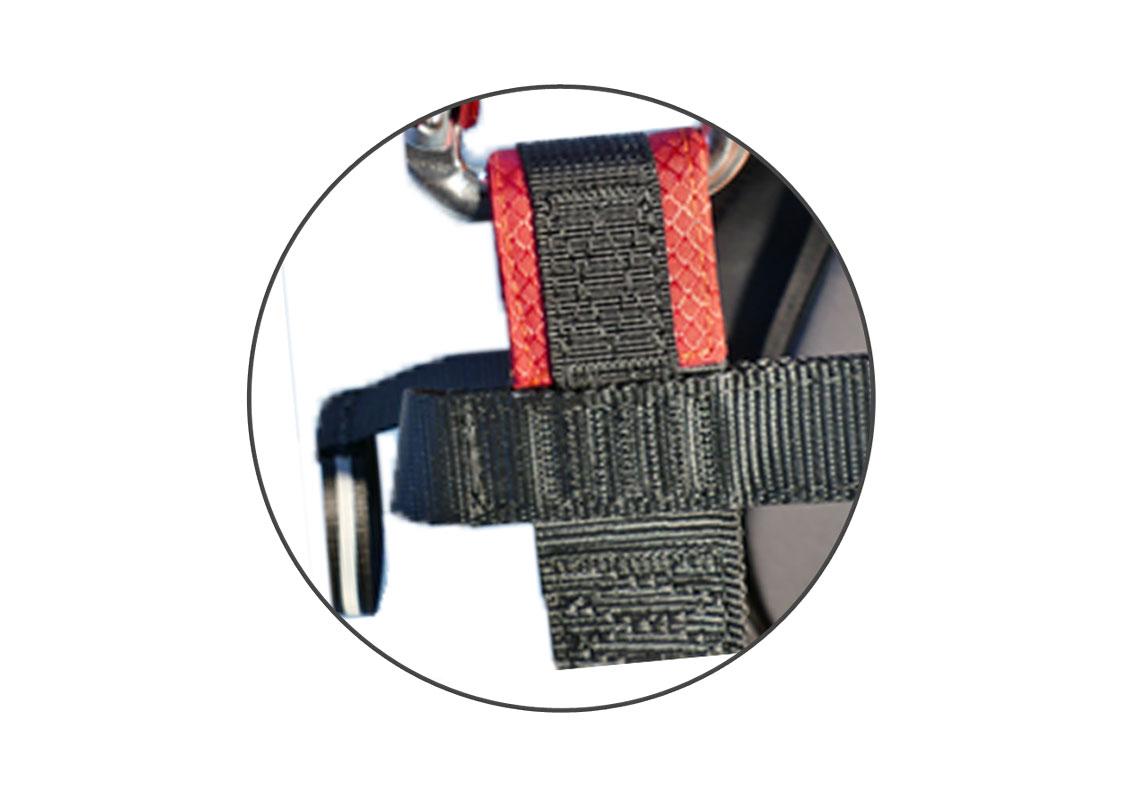

    • Loop and slide mechanism for quick adjustment of seating angle and quick disconnect of the harness from the trike.

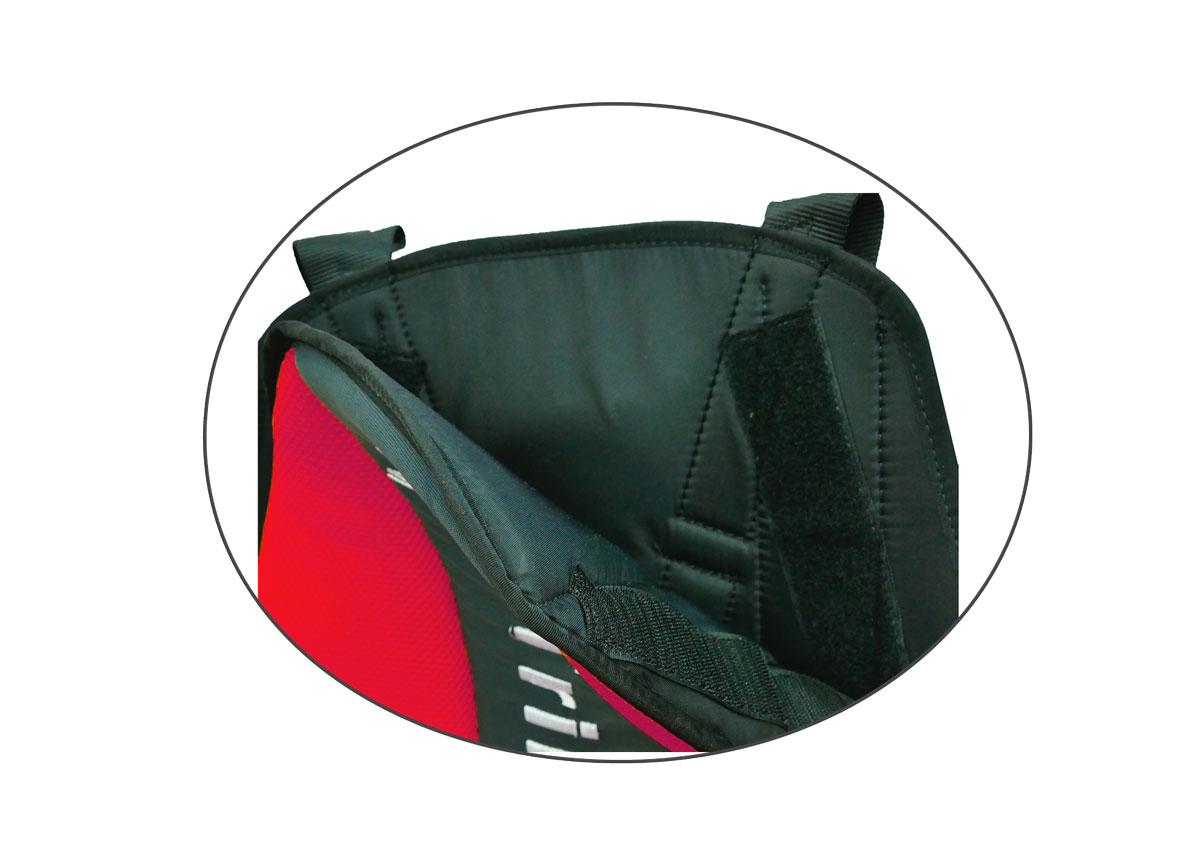

    • Seat and back cushion – removable and (hand) washable – one piece seat and back cushion for maximum comfort in the air.

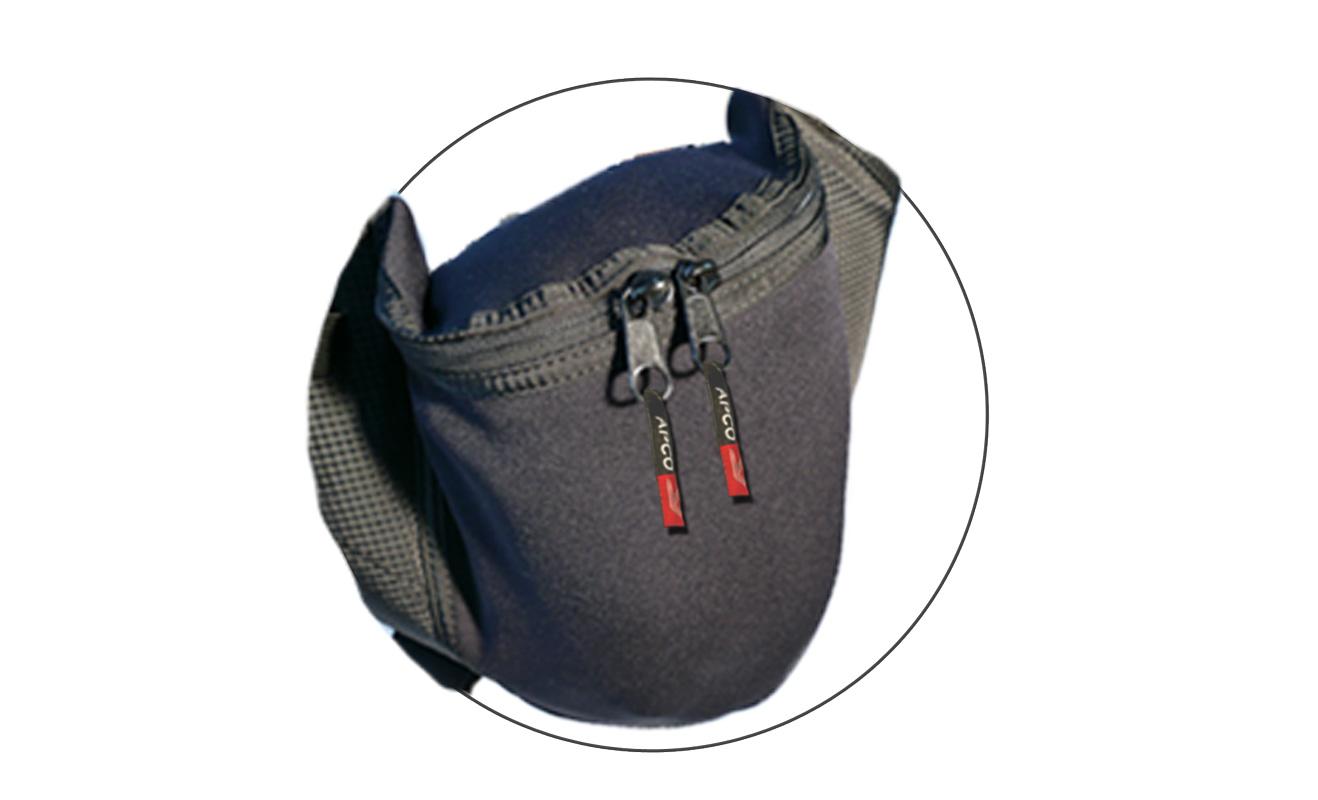

    • Side pockets – on both sides with easy in-flight access.
    • 7075 T6 Aluminum aviation grade hardware
    • High tenacity, diamond shape Nylon fabric, for durability and aesthetics.

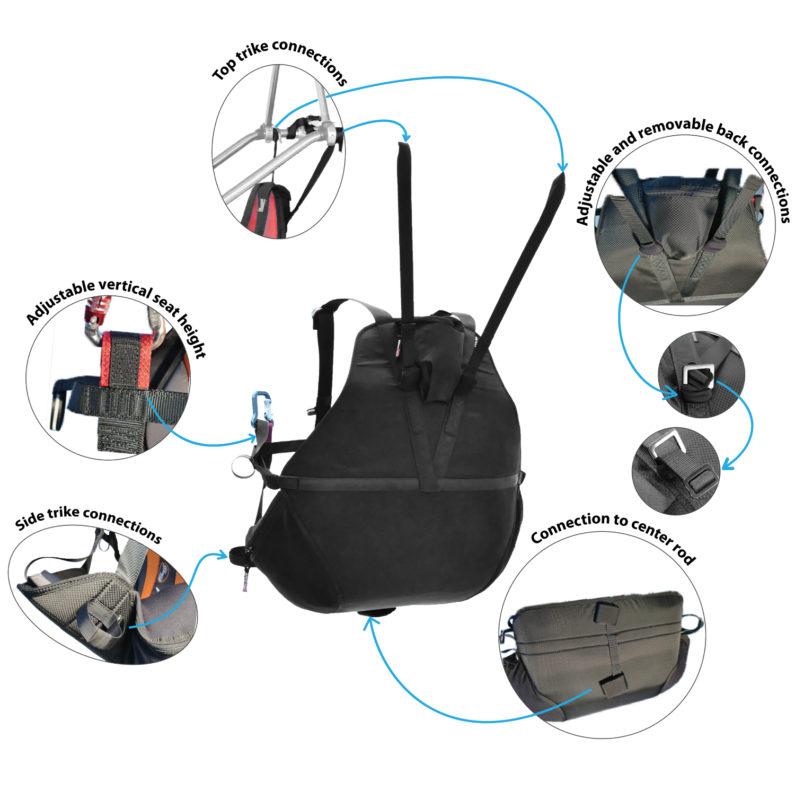

    • Universal – multiple connection points to accommodate almost all trikes on the market.
    • + much, much more…
    Weight
    Weight of Passenger Harness1.4 [Kg]
    Standard seatplate0.4 [Kg]
    One piece back and seat cushion0.3 [Kg]
    Passenger Harness Total2.1 [Kg]

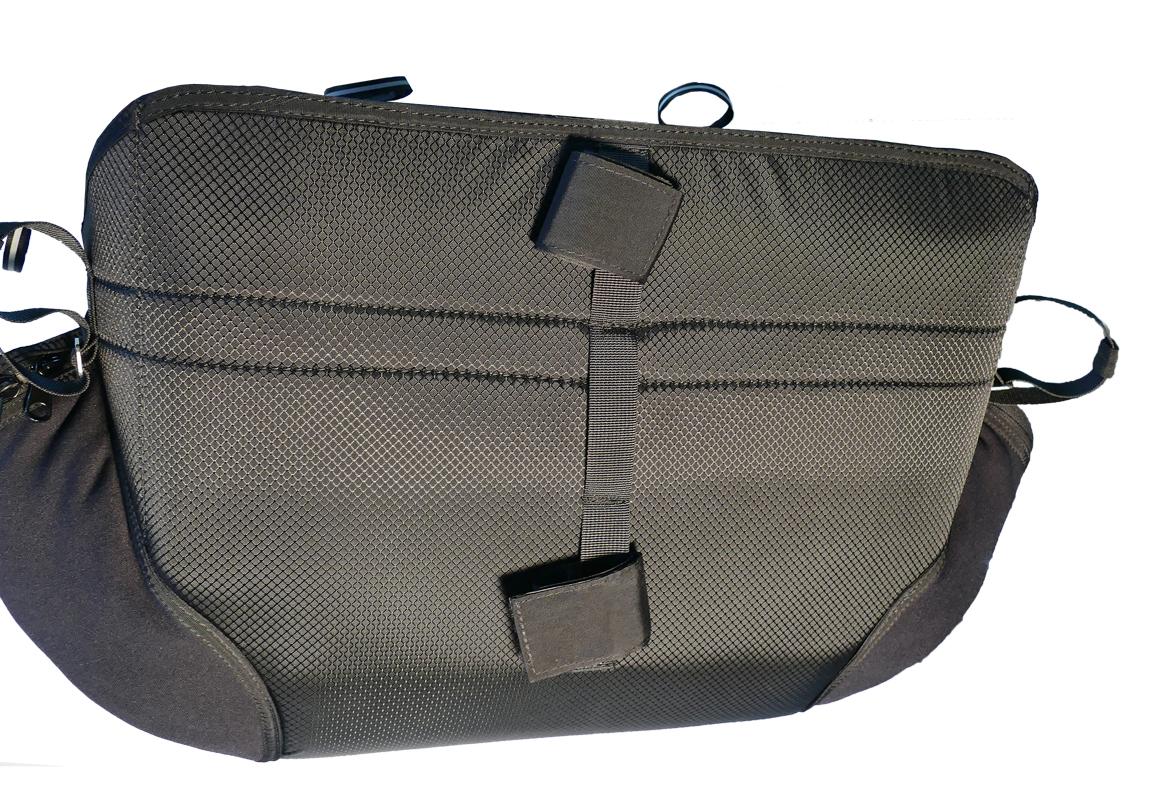

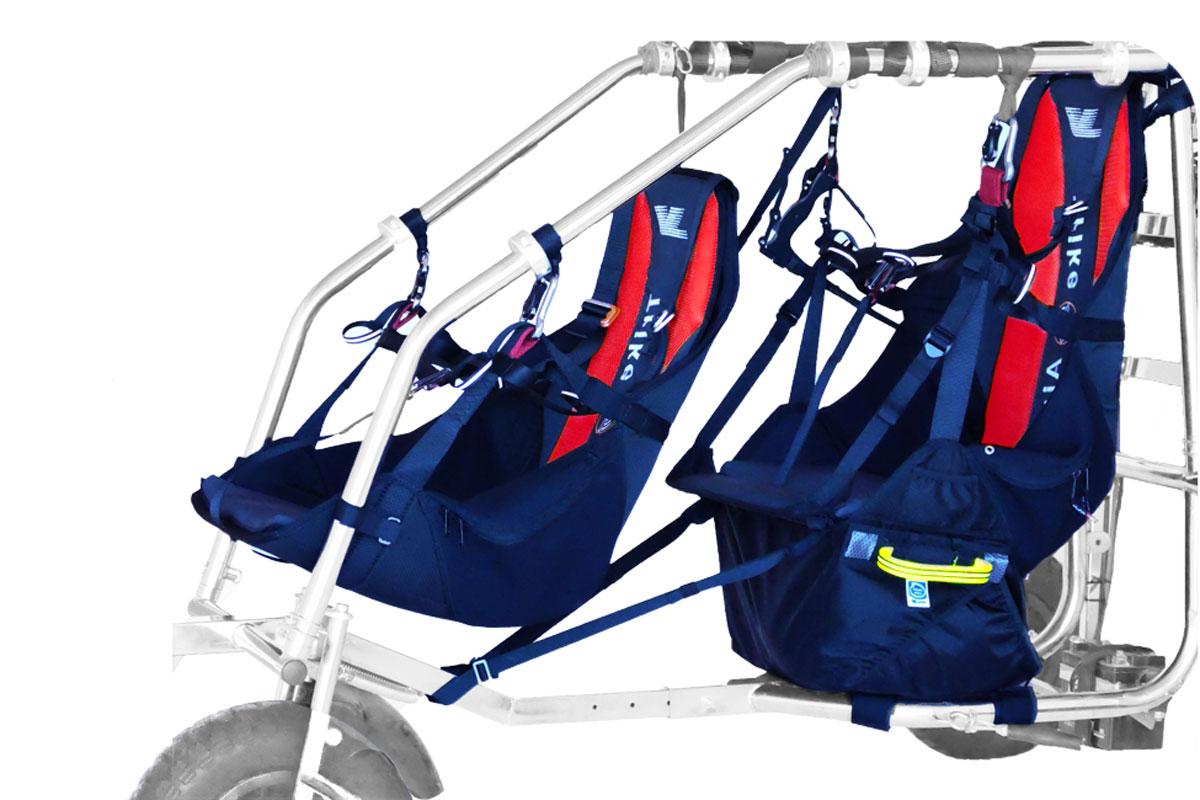

    The Passenger Harness is firmly secured inside the trikes frame to use the cage as protection.

    Frequently Asked Questions:

    Send us your questions: Contact us

    Optional Accessories

    Harnesses – Sizing Table

    HarnessSizeCodeHarness Weight [Kg]*Pilot Size (cm)Back Length (mm) - ASeat Length (mm) - BSeat Width (mm) - CDist. between Karabiners (mm)- DSupported Back (mm) - EHook-in Height (mm) - FPod Length - G
    First IIIMultisize with
    zipper expander
    481332.145 (incl.)140-190
    Hikeone size470301.300 (incl.)160 to 190610430230 x 2295 - 490320420
    Chairbag Integral Vone size460303.240 (incl.)160-185700390380385 - 575450430
    RitmaS/M450503.900 (incl.)Up to 170680400390420 - 615360420
    RitmaL/XL451004.000 (incl.)170-185750435400420 - 615400415
    RitmaXXL451504.100 (incl.)180 and up750435400420 - 615400405
    Spark IIS/M431025.120 (incl.)Up to 170740370350375 - 575400390
    Spark IIL/XL432025220 (incl.)170-185775410390375 - 575420415
    Spark IIXXL433025320 (incl.)180 and up790470400375 - 575420440
    KittoS / M443102710 (incl.)up to 185
    KittoL / XL443202840 (incl.)**180 - 205
    Swift RaceM/L446105.950 (incl.)up to 190640410320395 - 540360440900 - 1000
    Swift RaceXL446206.150 (incl.)185 and up700460340360 - 5353704801000 - 1100
    Swift SportM/L446305.310 (incl.)up to 190640410320395 - 540360440900 - 1000
    Swift SportL/XL446355.510 (incl.)185 and up700460340360 - 5353704801000 - 1100
    Swift ZeroM/L446404910 (incl.)up to 190640410320395 - 540360440900 - 1000
    Swift ZeroL/XL446455.110 (incl.)185 and up700460340360 - 5353704801000 - 1100
    2 Lightone size426101.300 (incl.)160 to 190610430230 x 2295 - 490320420
    Tandem Pilot Harnessone size424004.500 (incl.)Up to 195
    Tandem Passenger Harnessone size425003.300 (incl.)a wide range
    of passenger sizes
    Split Legs Paramotor
    HIGH Hook-In points
    S/M with
    zipper extender
    434001.590 (incl.)Up to 185600/660260230x2340-500380/440600/690
    Split Legs Paramotor
    HIGH Hook-In points
    L/XL with
    zipper extender
    434101.590 (incl.)185 and up630/690/750300260x2320-530420/480/540620/710
    Split Legs Paramotor
    LOW Hook-In points
    S/M with
    zipper extender
    435001.590 (incl.)Up to 185600/660260230x2340-500380/440420/480
    Split Legs Paramotor
    LOW Hook-In points
    L/XL with
    zipper extender
    435101.590 (incl.)180 and up630/690/750300260x2320-530420/480/540420/480/540
    Universal ParamotorMultisize with
    zipper extender
    410153.100 (incl.)Up to 190630/690430390240-640440/500460/680/750
    SLT Paramotor Harness
    High Hook-Up points
    Multisize with
    zipper extender
    280152.550 (incl.)Up to 190660/720400380360-610380/440590/680
    SLT Paramotor Harness
    Low Hook-Up points
    S/M with
    zipper extender
    4204252.495 (incl.)Up to 185660/720400380360-610380/440340/360
    SLT Paramotor Harness
    Low Hook-Up points
    L/XL with
    zipper extender
    4204262.495 (incl.)180 and up660/720400380360-610380/440340/360
    Trike Pilotone size491002.850 (incl.)160-190690330+9043050360420-580
    Trike Passengerone size492502.100 (incl.)160-190600340410510330350
    *Harness weight denotes the total weight of the harness including Standard parts supplied with the harness such as; Seat Plate, Airfoam Protector, vibration foam (PM harnesses), and if relevant, the optional Lexan Plate.
    It excludes other optional accessories such as Cockpits, Stirrups, reserve parachutes, zip-on side pickets/reserve containers etc.
    **Estimated Weight

    The Passenger harness is available in “one size fits all

    • 49250 – Trike Passenger Harness – includes seatplate and removable one piece back and seat cushion (does not include Karabiners)
