Superlight Mayday Rescue Parachute

null
One Day, Maybe, Mayday…

The Time-Proven Rescue System (since 1984)

Never fly without one!

Info

Saved Pilots

Superlight (SLT) Mayday range – Mayday 16 SLT, Mayday 18 SLT, Mayday 20 SLT – The SLT shares the same construction as the LT, but uses PN9 cloth which is the lightest high-tech cloth available.

Apco Aviation started manufacturing the Mayday in 1984, and since then put over 30 000 pieces into service in the Paragliding and Hang Gliding markets. The Mayday has hundreds of life saving deployments to its name, from beginners to world champions.

The Mayday SLT is available in three sizes, with a short or long bridle, for paragliding or hang gliding. Apco also manufactures a wide range of accessories for the Mayday range. This includes front and side mounted external containers for paragliding as well as external containers for hang gliding, split bridles, long bridle extensions, UV-sleeves and much more.

  • Lightest weight
  • Lowest packed volume
  • Dependable
  • Fast Opening
  • Low Sink Rate
  • High Strength
MaydayMD 16 SLTMD 18 SLTMD 20 SLT
TypePDA - (Pulled Down Apex / Inverted Apex Round Parachute
Area [m2]2330.437.5
Gores161820
Weight [kg]1.2201.5972.083
Packed Volume310039504750
Packed Size [cm]
Length x Width x Height
24.5x18.5x11.528.5x22.5x1231.0x22.0x12.5
Max Load[kg]100115130
Sink Rate m/sec*6.15*5.1*4.48*
Stability (1 - 5)555
Gr. per kg. load12.213.814.8
Canopy MaterialPN9PN9 / similarPN9 / similar

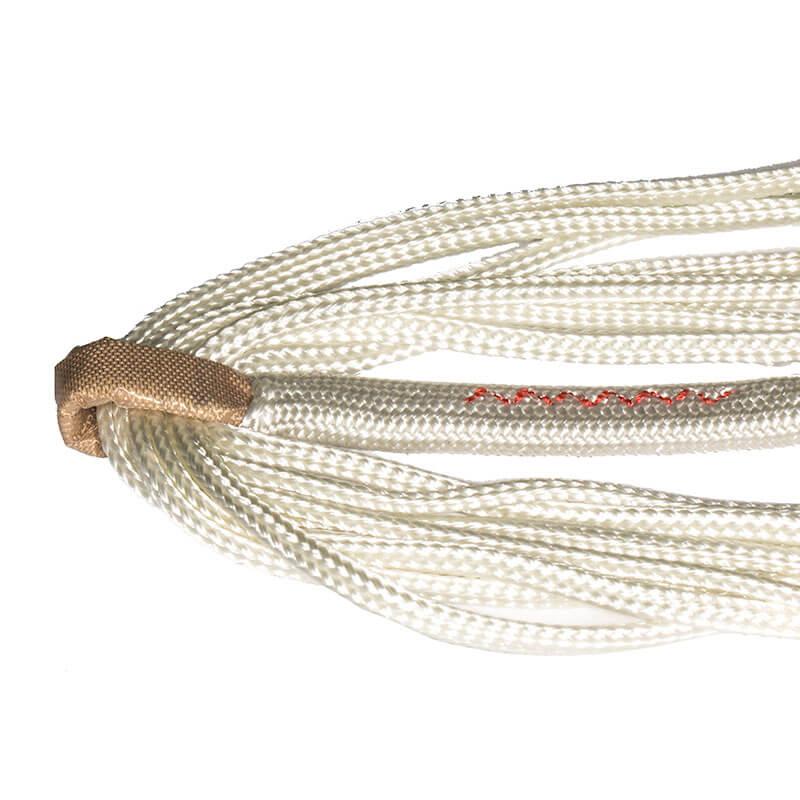

LinesNylon 120kgNylon 120kgNylon 120kg
CertificationEN Certification by Air TurquoiseEN Certification by Air Turquoise
Test Report
Label
EN Certification by Air Turquoise
Test Report
Label
* As measured by Air Turquoise test laboratory
Stability rating by Air Turquoise (1 bad - 5 excellent)
Packed Size vs. Volume:
The volume is measured by water displacement, and represents the smallest recommended packed volume, or the volume of the smallest recommended container to be used for the reserve. The specified volume is therefore far lower than the calculated volume that would be derived from the specified measurements.
The Packed Size measurement represents the measurements of the factory packed, but not compressed reserve, ie. the max dimension for each axis, and in its specified deployment bag, as shipped from apco.

It was a difficult project and we broke many chutes, testing again and again, polishing the deployment, but finally we got it right – see short video clip showing some drop tests and problems encountered on the way:

Apco Aviation started manufacturing the Mayday in 1984, and since then put over 40,000 pieces into service in the Paragliding and Hang Gliding markets. The Mayday has hundreds of life saving deployments to its name, from beginners to world champions ( Read letters from saved pilots).

The time proven classic DHV certified Mayday line from APCO has undergone an intensive diet.
In line with the market demand for lightweight equipment, APCO added lightweight versions to our emergency parachute range to be offered Side by side with our classic Mayday range.

  • Super light (SLT) Mayday range – Mayday 16 SLT, Mayday 18 SLT, Mayday 20 SLT – designed for pilots who wish to keep their equipment extremely light. Weight reduction for SLT was achieved by using state of the art materials – canopy cloth used is PN9 (the last, most sophisticated development in parachute cloth), as well as additional weight saving advanced design solutions.
  • Light (LT) Mayday range – Mayday 16 LT, Mayday 18 LT, Mayday 20 LT – The LT shares the same construction as the SLT, but uses PN1 cloth which is slightly heavier.
  • Classic Mayday range – Mayday 16, Mayday 18, Mayday 20, Guided Mayday and Mayday Tandem, as well as Mayday 28 UL.

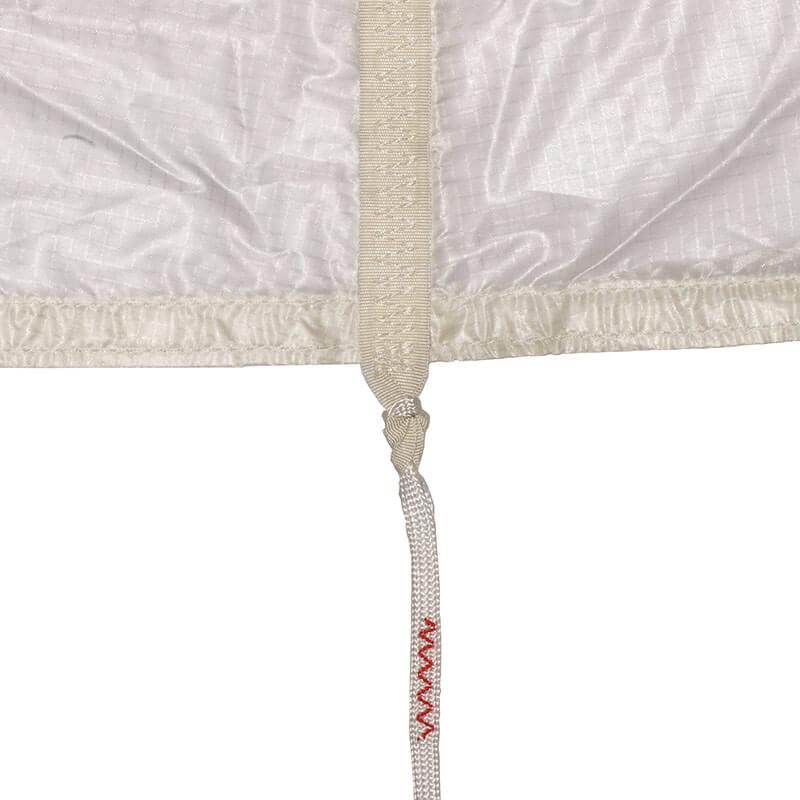

  • The Bridle is made from 1700kg Dyneema Webbing. The attachment loop is covered with a Teflon sheath, to protect it from dangerous friction which may occur during deployment. Finally the bridle has a line sheath attached, to protect the lines where they link to it.

The main benefit the MD LT and SLT range offers is keeping the performance and quality the same as our classic Mayday, but slimming down the weight and bulk to the incredible numbers specified in the Technical Details Tab

MSM – stands for Military Spec Monkey and confirms that our reserves are made from fabrics, designed and manufactured in accordance to the strictest Military Specifications. This adds another level of quality assurance.

APCO’s Mayday 16 SLT is the lightest chute on the market, in terms of canopy weight for the maximum load it can carry (12.2gr. of canopy per each kilo load).

There are lighter chutes on the market, but they are certified for very small loads – 80kg. and sometimes less.

When you compare the weight of the chute against the load it can handle, APCO Mayday 16 SLT emerges as the clear winner.

CANOPYMax. loadCanopy WeightGram per kilo load*
APCO MD 16 SLT100kg.1,220gr.12.2
Nervures L110kg.1,378gr12.5
Sup'Air M95kg.1,197gr.12.6
Sky lite L95kg.1,210gr.12.7
MCC L110kg.1,423gr.12.9
* Gram per Kilo Load
This is a unit that makes it easy to compare Reserves.
The unit is calculated by dividing the weight of the reserve, by its max load rating. The lower the number, the lighter the reserve is for its carrying capacity.

INCLUDED:

Each MayDay reserve parachute is supplied in a kitbag. Which is a useful to keep other equipment in once your mayday is installed in your harness.

Options & Accessories

Product Codes

Mayday PP 16 LT

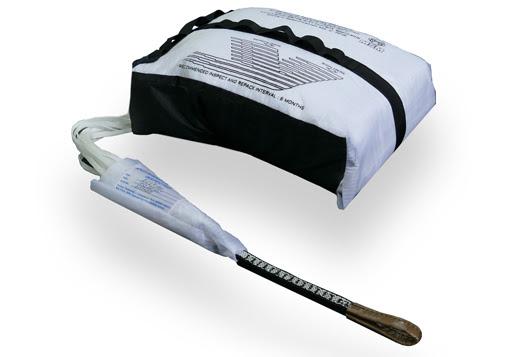

81101 LT: In deployment bag

Mayday PP 16 SLT

81101 SLT: In deployment bag

Mayday PP 18 LT

82101 LT: In deployment bag

Mayday PP 18 SLT

82101 SLT: In deployment bag

Mayday PP 20 LT

83101 LT: In deployment bag

Mayday PP 20 SLT

83101 SLT: In deployment bag

MaydayArea [m2]GoresWeight* [kg]Volume
[cc]
Packed Size [cm]
Length x Width x Height
Sink Rate [m/s]
(@ max Load)
Max Load [kg]gr / kg (Load)***Certification
Mayday Square25161.010300020.0x19.0x7.05.4 @100 Kg
5.72 @120 Kg
1209.16EN/LTF Certification - 100kg
EN Load/Drop test - 120 kg
MD 16 SLT
Super Light Round
23161.220310024.5x18.5x11.56.1510012.20EN Load/Drop Test by Air Turquoise
MD 16 LT
Light Round
23161.490355027.0x21.0x10.06.1510014.90EN Load/Drop Test by Air Turquoise
MD 16
Regular Round
23161.890400028.5x23.0x14.06.310617.83DHV
GS-02-0004-88
MD 18 SLT
Super Light Round
30.4181.597395028.5x22.5x12.05.1**11513.89EN Certification EP021.2009
MD 18 LT
Light Round
30.4181.922480031.0x22.5x13.05.112015.6LTF
RG 061.2012
MD 18
Regular Round
30.4182.220495032.0x22.5x15.05.412018.50SHV
PS0992.003
MD 20 SLT
Super Light Round
37.5202.083475031.0x22.0x12.54.48**13014.80EN Certification
E.P022.2009
MD 20 LT
Light Round
37.5202.300500032.0x23.0x12.54.48**14016.43EN Certification
EP056.2012
MD 20
Regular Round
37.5202.690540032.0x23.0x135.416016.85AFNOR/CEN
200143AP
GMD SLT
Superlight Rogallo
36161.950500030.5x22.0x13.54 m/s@(90kg)
4.9m/s@(130Kg)
60-13015.00EN Certification
EP057.2012
GMD
Steerable Rogallo
39162.900595033.0x24.0x15.52.8 m/s@(90kg)
3.2m/s@(130Kg)
60-13022.31EN Certification
EP009.2007
MD Bi
Round Tandem Reserve
47183.250610033.5x27.0x13.55.420016.25AFNOR
PS98228AP
MD 28UL
High Capacity Round Reserve for Trikes
64284.0001260037.0x23.0x20.06.334011.76EN Load test
12491:2001
Packed Size vs. Volume:
The volume is measured by water displacement, and represents the smallest recommended packed volume, or the volume of the smallest recommended container to be used for the reserve. The specified volume is therefore far lower than the calculated volume that would be derived from the specified measurements.
The Packed Size measurement represents the measurements of the factory packed, but not compressed reserve, ie. the max dimension for each axis, and in its specified deployment bag, as shipped from apco.
* Weight Excludes weight of optional long bridle for Hang-glider version:
Add 190gr for Hanggliding (HG) Extension Bridle (Code: 43006), or
Add 550gr for MD Bi HG Bridle (Code: 43002L)
** Sink Rate as measured by Air Turquoise test laboratory
Stability rating by Air Turquoise (1 bad - 5 excellent)
*** Gram per [Kg] Load
This is a unit that makes it easy to compare Reserves.
The unit is calculated by dividing the weight of the reserve, by its max load rating. The lower the number, the lighter the reserve is for its carrying capacity.

42485: MayDay Presentation Bag

Each MayDay reserve parachute will be supplied in the new “Presentation gift bag” external package. This is a small aesthetic upgrade, a nice addition and gift for the pilot.
Use this bag for your instruments, shoes, as a shower bag, as a lunch box, or whatever you like and be reassured your life is in good hands.
Mayday Prices remain unchanged 😉



FEATURES

    • Looks great
    • Extremely useful
    • Made from light materials
    • Detachable carry-strap, can also be used to buckle up folded wing.
    • Designated, clear-cover slot for owner’s details card.
    • Owner’s details card included. Just fill up and slide in.
