42025: Light Universal Bridle
80.60$Light Universal Bridle :: Code 42025 :: Set of 2
Length: 1320mm (end to end)
Strength: < 1,700 [DaN]
Mayday Square
One Day, Maybe, Mayday…
APCO Time-Proven Rescue Systems (since 1984)
Never fly without one!
Info
Saved Pilots
Apco Aviation started manufacturing the Mayday reserve parachute in 1977, and since then put over 30 000 pieces into service in the Paragliding and Hang Gliding markets. The Mayday has hundreds of life saving deployments to its name, from beginners to world champions ( Read letters from saved pilots).

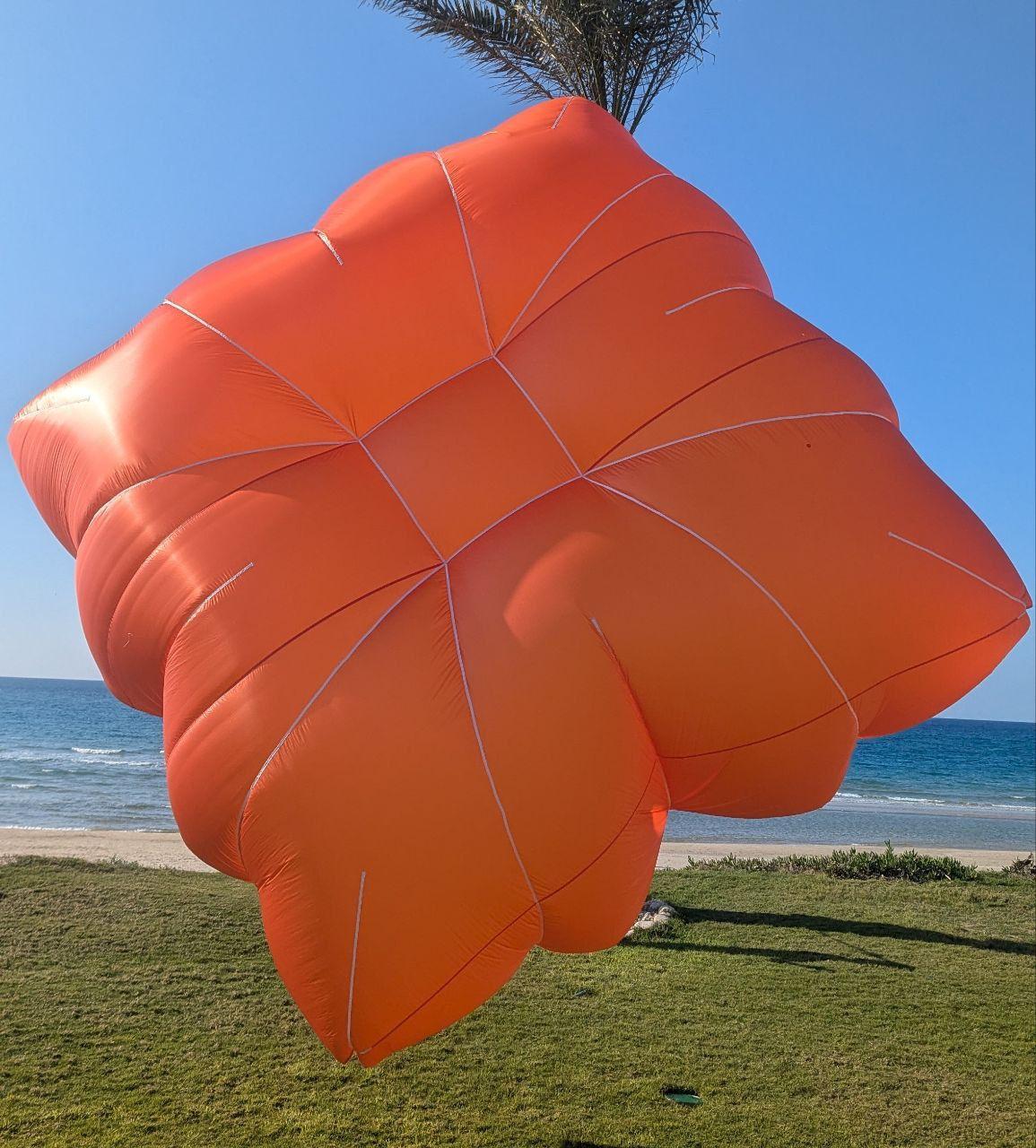

The Mayday Square follows in the proud tradition of the Mayday Range, and is built to the same exacting standards that has made the Mayday range the benchmark of all reserve parachute systems.

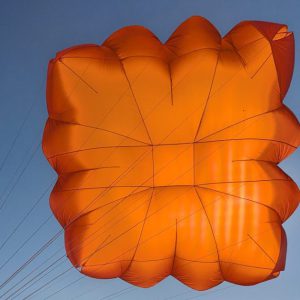

The advantage of the square design is that it gives a more stable descent (less pendulum effect), and therefore has a lower sink rate!
The Mayday Square is compact in size and weight.
This makes it a very attractive package for pilots concerned about the weight of their kit.
The Mayday Square is certified to EN standard at 100 and 140 [kg] with sink rate of ~5.1 and ~5.1 [m/s] respectively.
It is currently available in two sizes, with a short dyneema bridle, for paragliding or Paramotoring.
- Stable descent
- Low pack volume
- Fast Opening
- Low Sink Rate
| MD Square 100 | MD Square 140 | |
|---|---|---|
| Gores | 16 | 16 |
| Area [m2] | 25 | 33 |
| No. of Lines | 20 | 20 |
| Weight [gr] | 1341 | 1675 |
| Packed Volume [cc] | 4000 | 4800 |
| Packed Size [cm] Length x Width x Height | 20x19x8 | 26x21x10 |
| Load [kg] | 50-100 | 80-140 |
| Sink Rate [m/s] | 5.1 | 5.1 |
| EN Certification | EN According to EN 12491 up to 100kg | EN According to EN 12491 up to 140kg |
| Packed Size vs. Volume: The volume is measured by water displacement, and represents the smallest recommended packed volume, or the volume of the smallest recommended container to be used for the reserve. The specified volume is therefore far lower than the calculated volume that would be derived from the specified measurements. The Packed Size measurement represents the measurements of the factory packed, but not compressed reserve, ie. the max dimension for each axis, and in its specified deployment bag, as shipped from apco. The weight may vary by up to ±3%. |
||
The Mayday Square boasts superior light-weight construction and materials. The canopy cloth is PN1 ripstop nylon. The skirt and canopy is reinforced with mil spec nylon tape, neatly wrapped and stitched with a precision double needle machine. The dyneema line attachments are sewn using automated pattern stitches into the canopy, reducing potential weak points while ensuring consistently high quality and strength.

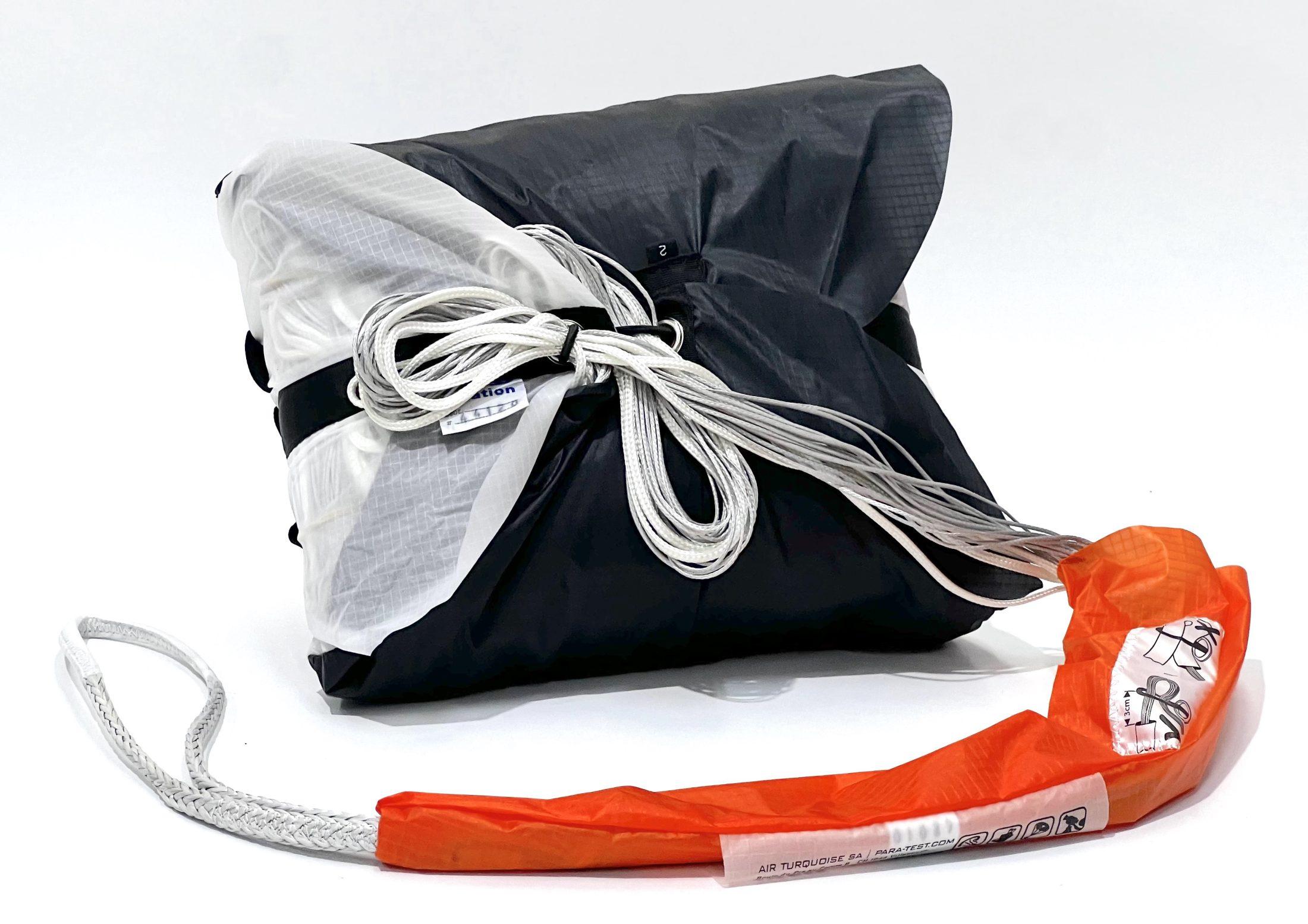

The Bridle is made from 2300kg Dyneema Webbing. The attachment loop is covered with a Teflon sheath, to protect it from dangerous friction which may occur during deployment.
MSM – stands for Military Spec Monkey and confirms that our reserves are made from fabrics, designed and manufactured in accordance to the strictest Military Specifications. This adds another level of quality assurance.
INCLUDED:

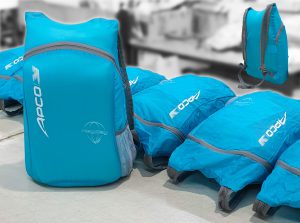

Each MayDay reserve parachute is supplied in a DayPack backpack. Which is a useful to keep other equipment in once your mayday is installed in your harness.
Once your Mayday is installed in your harness, DayPack is useful to keep your other equipment in.
Options & Accessories
43122F: Maillon no.6 – Zink plated Steel – Certified breaking load of 2000[Kg]
16.90$Steel Plated RAPIDE MAILLON NO:6
For connection of Y-shaped bridle to the harness
MBL 2,000kg
44120SLT: Light Deployment Bag
Mayday deployment bag for use inside PG harness with integral reserve container.
Compatible MAYDAYS 16LT and 16/18 SLT
80016/80017: UNIVERSAL CONTAINER WITH FLIGHT DECK
107.90$ – 188.50$Light weight, simple and elegant container for paramotor or free flight use.
Includes an optional flight deck with space for two instruments.
The Universal container has multiple attachment points to accommodate mounting on most paramotor frames/harnesses.
Available in 2 sizes to cover all sizes of APCO reserve parachutes
81155SLT – External Container for Mayday LT and SLT
59.80$ – 140.40$light weight simple and elegant solution for your reserve.
Repack
Q: What is the opening time and minimum height for deployment?
A: APCO does not usually advertise this information as it depends on many variables that change in real life situations, and can therefore be very misleading.
According to the certification tests, the opening time is 2.75 seconds. This is measured during a controlled deployment test.
Minimum height – this is not a parameter measured during certification, but according to the opening time (2.75 seconds) – if you calculate falling speed of 16 – 32 m/s (32 m/s is the speed at which the certification test is done), then the min height required for deployment would be 44-88m, however, we advise that if you are in trouble, no matter how low, there is no harm in throwing, we have witnessed saves at very low altitudes!
Product Codes
MD Square – Square Reserve Parachute
- 85101PN1: Mayday Square 100, folded in deployment bag 44120SLT
- 85133PN1: Mayday Square 140, folded in deployment bag 44120SLT
| Mayday | Area [m2] | Gores | Weight* [kg] | Volume [cc] | Packed Size [cm] Length x Width x Height | Sink Rate [m/s] (@ max Load) | Max Load [kg] | gr / kg (Load)*** | Certification |
|---|---|---|---|---|---|---|---|---|---|
| Mayday Square 100 | 25 | 16 | 1.341 | 4000 | 20.0x19.0x8.0 | 5.1 @100 Kg | 100 | 13.41 | EN/LTF - 100kg |
| Mayday Square 140 | 33 | 16 | 1.675 | 4800 | 26.0x21.0x10.0 | 5.1 @140 Kg | 140 | 11.96 | EN/LTF -140kg |
| MD 16 SLT Super Light Round | 23 | 16 | 1.220 | 3100 | 24.5x18.5x11.5 | 6.15 | 100 | 12.20 | EN Load/Drop Test by Air Turquoise |
| MD 16 SLT Super Light Round | 23 | 16 | 1.220 | 3100 | 24.5x18.5x11.5 | 6.15 | 100 | 12.20 | EN Load/Drop Test by Air Turquoise |
| MD 16 LT Light Round | 23 | 16 | 1.490 | 3550 | 27.0x21.0x10.0 | 6.15 | 100 | 14.90 | EN Load/Drop Test by Air Turquoise |
| MD 16 LT Light Round | 23 | 16 | 1.490 | 3550 | 27.0x21.0x10.0 | 6.15 | 100 | 14.90 | EN Load/Drop Test by Air Turquoise |
| MD 16 Regular Round | 23 | 16 | 1.890 | 4000 | 28.5x23.0x14.0 | 6.3 | 106 | 17.83 | DHV GS-02-0004-88 |
| MD 16 Regular Round | 23 | 16 | 1.890 | 4000 | 28.5x23.0x14.0 | 6.3 | 106 | 17.83 | DHV GS-02-0004-88 |
| MD 18 SLT Super Light Round | 30.4 | 18 | 1.597 | 3950 | 28.5x22.5x12.0 | 5.1** | 115 | 13.89 | EN Certification EP021.2009 |
| MD 18 SLT Super Light Round | 30.4 | 18 | 1.597 | 3950 | 28.5x22.5x12.0 | 5.1** | 115 | 13.89 | EN Certification EP021.2009 |
| MD 18 LT Light Round | 30.4 | 18 | 1.922 | 4800 | 31.0x22.5x13.0 | 5.1 | 120 | 15.6 | LTF RG 061.2012 |
| MD 18 Regular Round | 30.4 | 18 | 2.220 | 4950 | 32.0x22.5x15.0 | 5.4 | 120 | 18.50 | SHV PS0992.003 |
| MD 20 SLT Super Light Round | 37.5 | 20 | 2.083 | 4750 | 31.0x22.0x12.5 | 4.48** | 130 | 14.80 | EN Certification E.P022.2009 |
| MD 20 LT Light Round | 37.5 | 20 | 2.300 | 5000 | 32.0x23.0x12.5 | 4.48** | 140 | 16.43 | EN Certification EP056.2012 |
| MD 20 Regular Round | 37.5 | 20 | 2.690 | 5400 | 32.0x23.0x13 | 5.4 | 160 | 16.85 | AFNOR/CEN 200143AP |
| GMD SLT Superlight Rogallo | 36 | 16 | 1.950 | 5000 | 30.5x22.0x13.5 | 4 m/s@(90kg) 4.9m/s@(130Kg) | 60-130 | 15.00 | EN Certification EP057.2012 |
| GMD Steerable Rogallo | 39 | 16 | 2.900 | 5950 | 33.0x24.0x15.5 | 2.8 m/s@(90kg) 3.2m/s@(130Kg) | 60-130 | 22.31 | EN Certification EP009.2007 |
| MD Bi Round Tandem Reserve | 47 | 18 | 3.250 | 6100 | 33.5x27.0x13.5 | 5.4 | 200 | 16.25 | AFNOR PS98228AP |
| MD 28UL High Capacity Round Reserve for Trikes | 64 | 28 | 4.000 | 12600 | 37.0x23.0x20.0 | 6.3 | 340 | 11.76 | EN Load test 12491:2001 |
| Packed Size vs. Volume: | |||||||||
 | The volume is measured by water displacement, and represents the smallest recommended packed volume, or the volume of the smallest recommended container to be used for the reserve. The specified volume is therefore far lower than the calculated volume that would be derived from the specified measurements. The Packed Size measurement represents the measurements of the factory packed, but not compressed reserve, ie. the max dimension for each axis, and in its specified deployment bag, as shipped from apco. |
||||||||
| * Weight Excludes weight of optional long bridle for Hang-glider version: Add 190gr for Hanggliding (HG) Extension Bridle (Code: 43006), or Add 550gr for MD Bi HG Bridle (Code: 43002L) The product weight may vary by up to 3%. |
|||||||||
| ** Sink Rate as measured by Air Turquoise test laboratory Stability rating by Air Turquoise (1 bad - 5 excellent) |
|||||||||
| *** Gram per [Kg] Load This is a unit that makes it easy to compare Reserves. The unit is calculated by dividing the weight of the reserve, by its max load rating. The lower the number, the lighter the reserve is for its carrying capacity. |
|||||||||
42485: MayDay Presentation Bag
Each MayDay reserve parachute will be supplied in the new “Presentation gift bag” external package. This is a small aesthetic upgrade, a nice addition and gift for the pilot.
Use this bag for your instruments, shoes, as a shower bag, as a lunch box, or whatever you like and be reassured your life is in good hands.
Mayday Prices remain unchanged 😉
FEATURES
-
- Looks great
- Extremely useful
- Made from light materials
- Detachable carry-strap, can also be used to buckle up folded wing.
- Designated, clear-cover slot for owner’s details card.
- Owner’s details card included. Just fill up and slide in.
