Simply named Pilot harness and Passenger harness these harness set is APCO’s foot mark in the tandem harness market.
Specially designed for professional use by tandem pilots and their passengers.

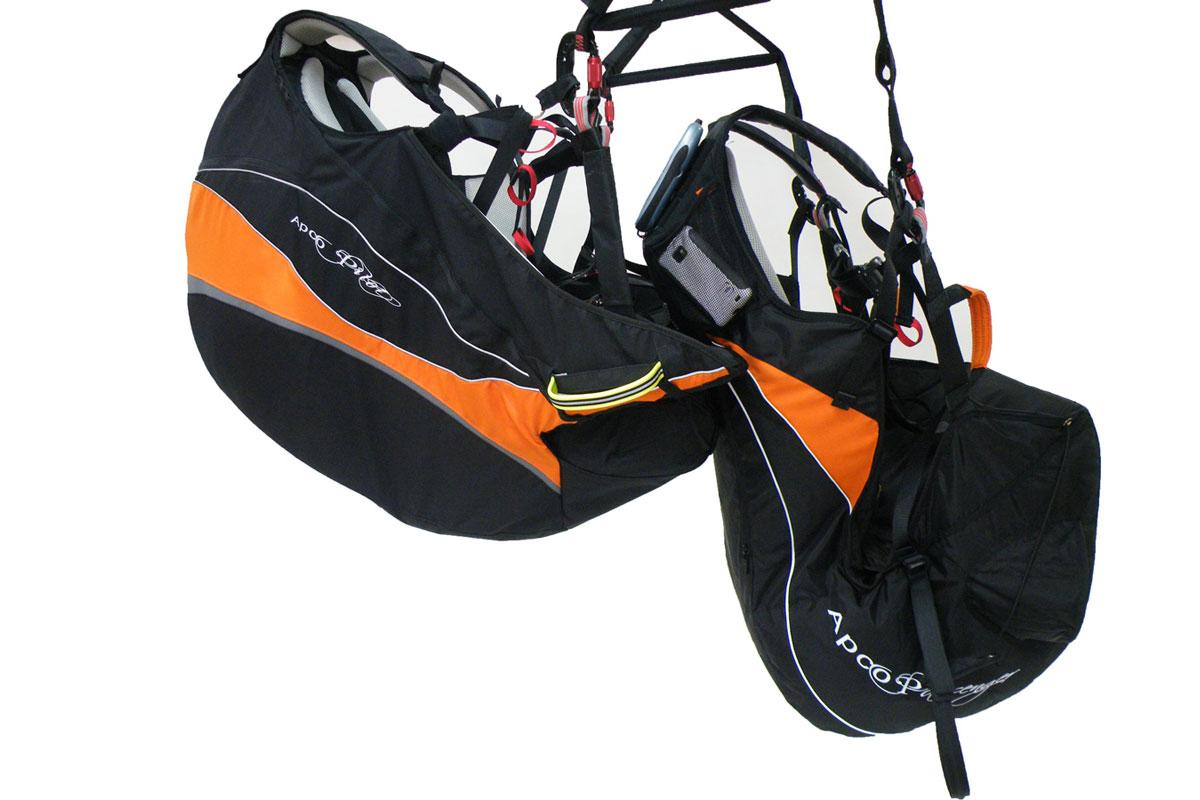

Each harness is designed to be used as part of an integrated set for Pilot and Passenger. Synergized to work perfectly together.
Of course each harness can be used on its own, but they work best when combined.

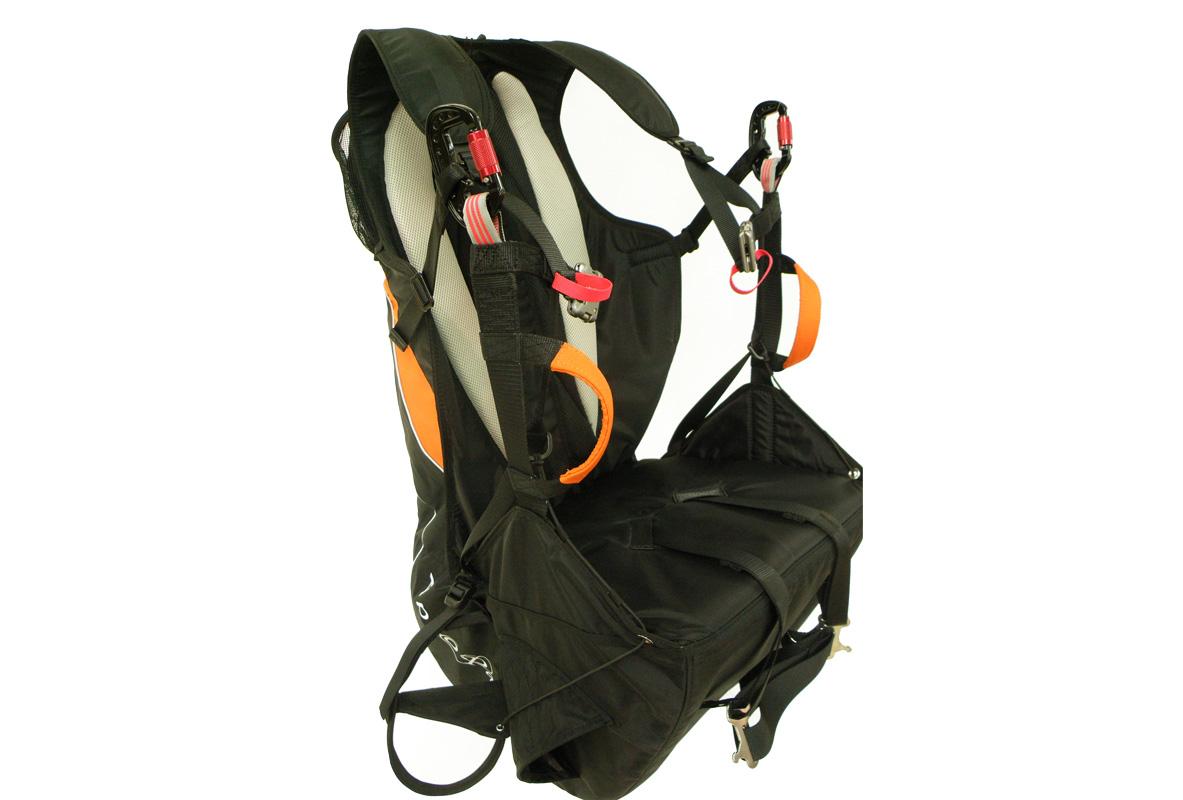

Passenger Harness
Like the matching Pilot Harness, the Passenger Harness is highly comfortable, safe and light, designed for ease of use with maximum protection.
Harness provides for excellent ergonomics on the ground and in flight.
Numerous special features built into it to make use comfortable and job easy.
Equipped with under the seat, specially designed Cygnus airbag. Dual inlets installed on each side of airbag and combined with classic frontal intake valve to ensure airbag is fully inflated at all stages of flight, no matter what the passenger position is.

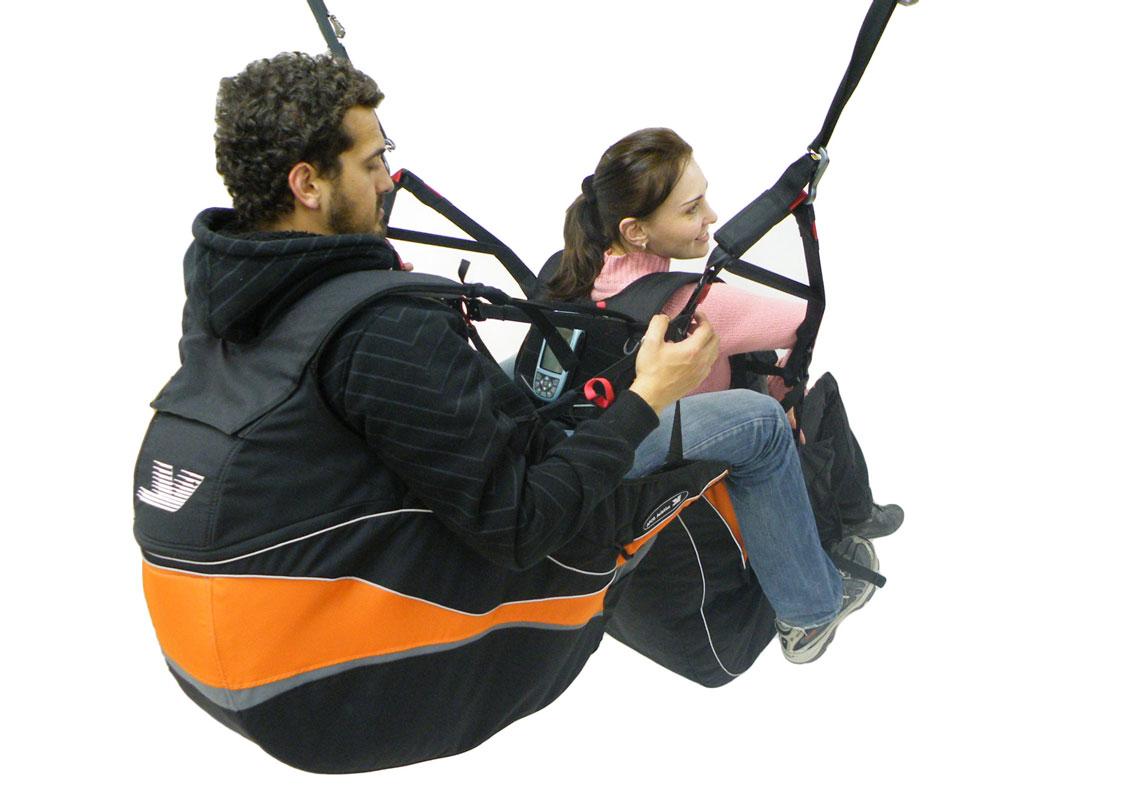

Unlike any other Passenger Harness our harness allows for automatic transition to sitting position of passenger on take-off (pilot induced), making in and out of harness extremely easy.
The harness has multiple adjustment points to fit a wide range of passenger sizes – offered in one size only.
Only 2.2kg. without seatplate and airfoam (add 500gr. for plywood seatplate)
Maximum protection – APCO’s under the seat inflatable airbag + airfoam back protection
Automatic passenger transition into sitting position on take-off (pioneered by APCO)
Size adjustment using a back extension zipper creating a unisize harness to accommodate all pilots from the smallest to the tallest.
Low volume – easy to fold and pack
Foolproof get-up buckle system

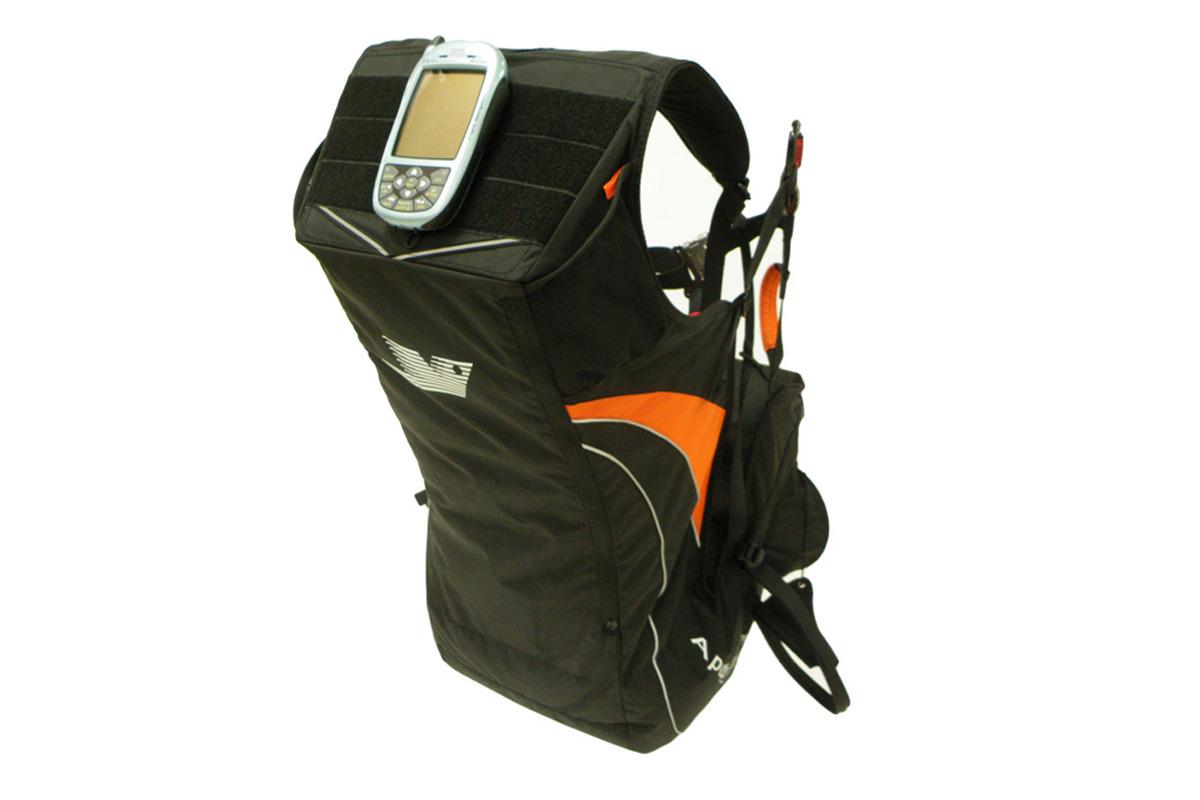

Integrated velcroed instrument deck on the back for pilot use
Two side pockets on the back for pilot use
Special side handles highly visible and accessible for launch assistant (also something for passenger to hold during flight)
Optimal back support and thick airmesh lining for breathability and comfort.
Reflective piping for better visibility in the air and on the ground
Plenty of space in the back pocket
Plenty of additional pockets
High density cloth – light, strong and durable
Cloth covered shoulder straps
Loop and slide adjusters for one handed in-flight adjustment
7075 T6 Aluminum aviation grade hardware
Designed for use with APCO’s new 3 Ton forged karabiner (harness designed specially to be coupled with this karabiner)
+ much, much more…

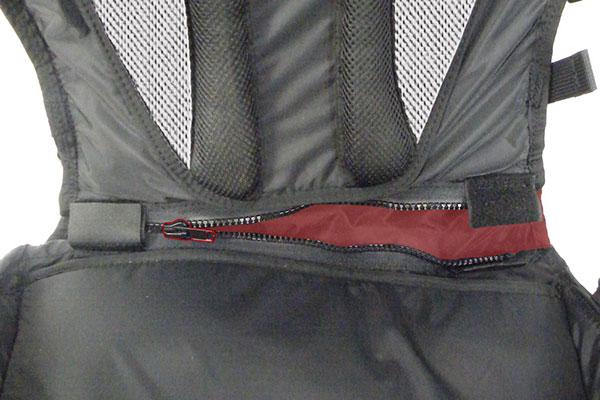

Size Adjustment – One size fits All – Zipper size adjustment

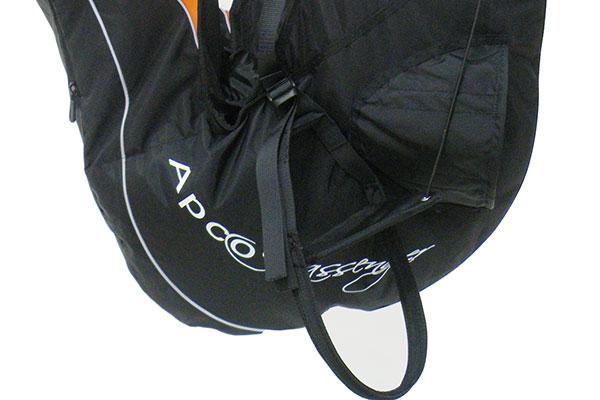

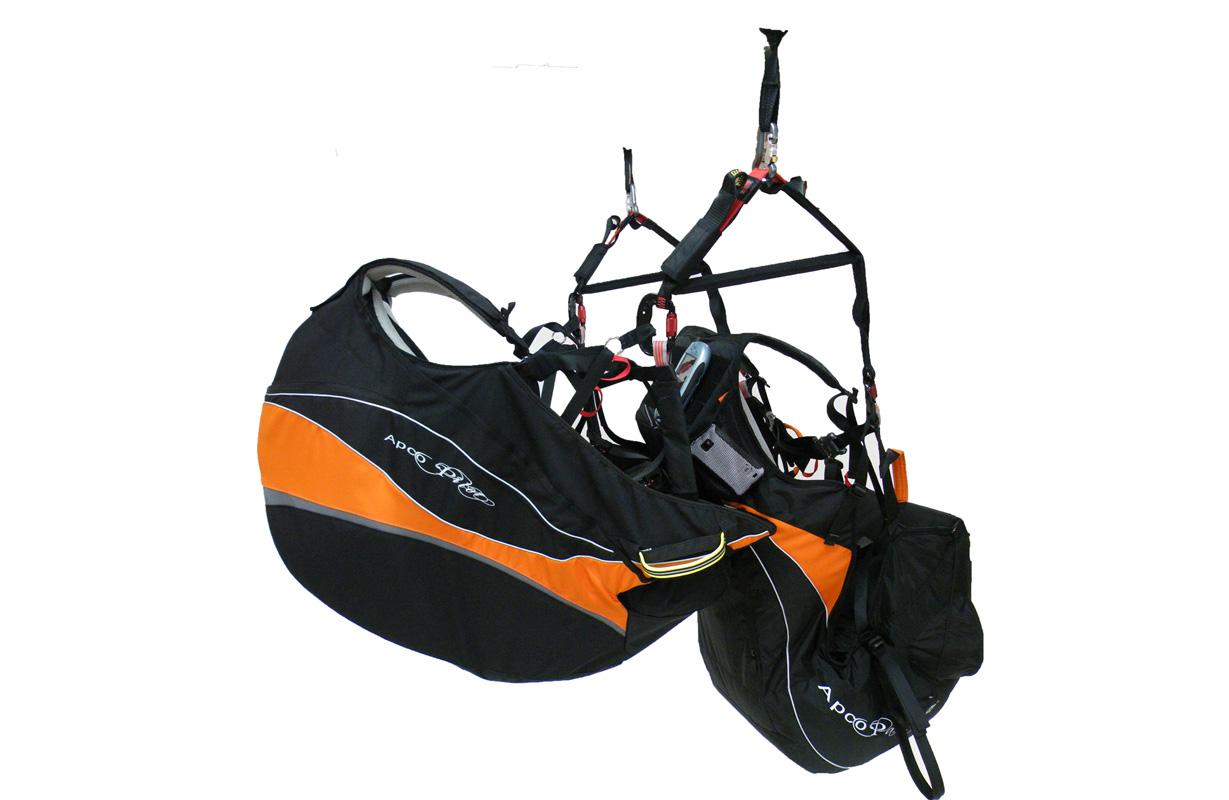

Footrest for Pilot – Attaches to Passenger Harness – Improves Weight-shift, helps to get your passenger seated, improves pilot comfort
Integrated velcroed instrument deck on the back for pilot use

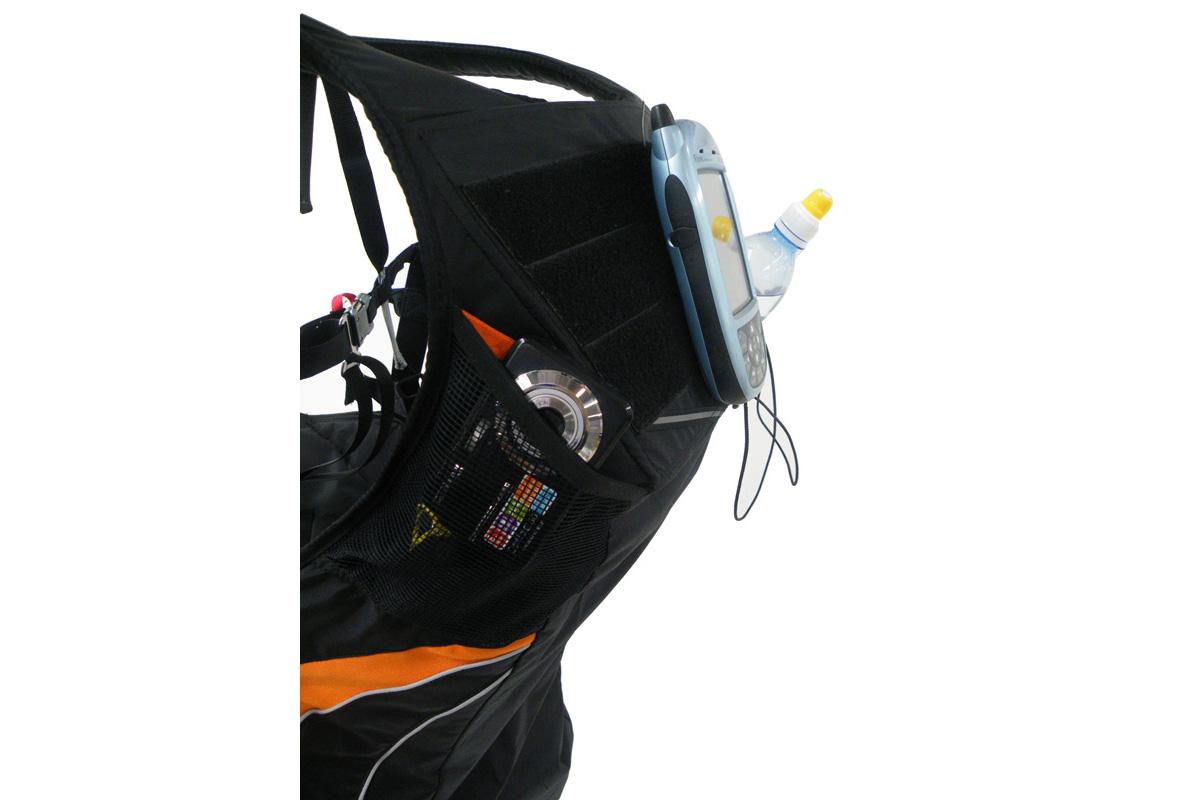

Two side pockets on the back for pilot use

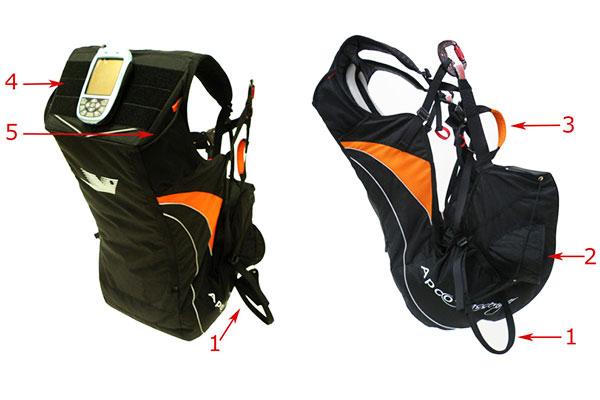

1. Pilot leg rest stirrup – Automatic passenger transition into sitting position on take-off (pioneered by APCO),
2. APCO’s under the seat inflatable airbag with side mounted inlet,
3. Special side handles highly visible and accessible for launch assistant (also something for passenger to grab during flight)
4. Integrated velcro instrument deck on the back for pilot use
5. Two side pockets on the back for pilot use
Weight
Harness
2.7 [Kg]
Standard seatplate
0.6 [Kg]
Total Weight
3.3 [Kg]

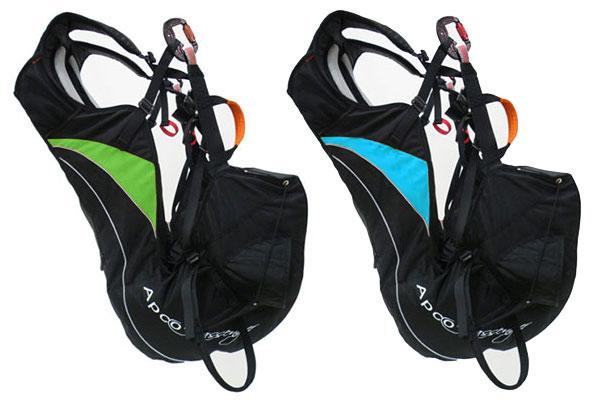

The Tandem Passenger Harness is available in two standard colors: Black/Lime and Black/Blue.
Black/Lime

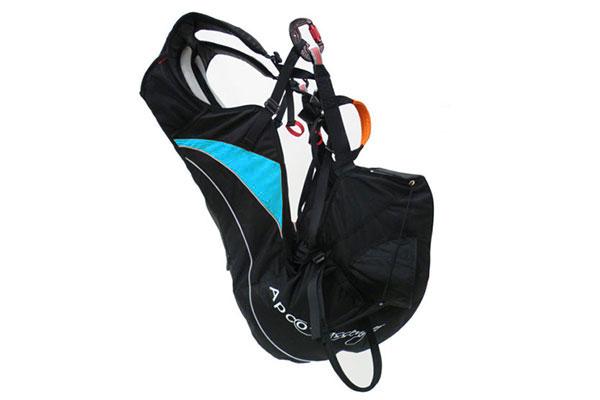

Black/Blue
Integrated Cygnus Airbag
Passenger protection was top priority when designing the passenger harness. It has an aerodynamically shaped integrated cygnus airbag built in with 2 side inlets and one large center inlet insuring constant inflation of the air bag, no matter where the passengers legs are positioned. The cygnus airbag, protects the body, utilizing our proven chamber system for controlled air release in case of impact.
Foam Protector (inc. as standard in the harness)
In addition to the cygnus Airbag the passenger harness has integrated foam back protection. The built in foam protects the back area of the passenger but also protected the front of the pilot’s body in case off an accident.
Biplace : système d’aide du positionnement du passager au décollage
ROCK THE OUTDOOR a publié plusieurs vidéos d’incidents au décollage en biplace, notamment celle avec un problème d’un assistant qui s’est retrouvé avec la main prise dans les sangles ou celle d’une passagère qui a attrapé la poignée du secours en cherchant à s’agripper… Ces incidents n’auraient pas eu lieu si les… read more
Harnesses – Sizing Table
Harness
Size
Code
Harness Weight [Kg]*
Pilot Size (cm)
Back Length (mm) - A
Seat Length (mm) - B
Seat Width (mm) - C
Dist. between Karabiners (mm)- D
Supported Back (mm) - E
Hook-in Height (mm) - F
Pod Length - G
First III
Multisize with
zipper expander
48133
2.145 (incl.)
140-190
Hike
one size
47030
1.300 (incl.)
160 to 190
610
430
230 x 2
295 - 490
320
420
Chairbag Integral V
one size
46030
3.240 (incl.)
160-185
700
390
380
385 - 575
450
430
Ritma
S/M
45050
3.900 (incl.)
Up to 170
680
400
390
420 - 615
360
420
Ritma
L/XL
45100
4.000 (incl.)
170-185
750
435
400
420 - 615
400
415
Ritma
XXL
45150
4.100 (incl.)
180 and up
750
435
400
420 - 615
400
405
Spark II
S/M
43102
5.120 (incl.)
Up to 170
740
370
350
375 - 575
400
390
Spark II
L/XL
43202
5220 (incl.)
170-185
775
410
390
375 - 575
420
415
Spark II
XXL
43302
5320 (incl.)
180 and up
790
470
400
375 - 575
420
440
Kitto
S / M
44310
2710 (incl.)
up to 185
Kitto
L / XL
44320
2840 (incl.)**
180 - 205
Swift Race
M/L
44610
5.950 (incl.)
up to 190
640
410
320
395 - 540
360
440
900 - 1000
Swift Race
XL
44620
6.150 (incl.)
185 and up
700
460
340
360 - 535
370
480
1000 - 1100
Swift Sport
M/L
44630
5.310 (incl.)
up to 190
640
410
320
395 - 540
360
440
900 - 1000
Swift Sport
L/XL
44635
5.510 (incl.)
185 and up
700
460
340
360 - 535
370
480
1000 - 1100
Swift Zero
M/L
44640
4910 (incl.)
up to 190
640
410
320
395 - 540
360
440
900 - 1000
Swift Zero
L/XL
44645
5.110 (incl.)
185 and up
700
460
340
360 - 535
370
480
1000 - 1100
2 Light
one size
42610
1.300 (incl.)
160 to 190
610
430
230 x 2
295 - 490
320
420
Tandem Pilot Harness
one size
42400
4.500 (incl.)
Up to 195
Tandem Passenger Harness
one size
42500
3.300 (incl.)
a wide range
of passenger sizes
Split Legs Paramotor
HIGH Hook-In points
S/M with
zipper extender
43400
1.590 (incl.)
Up to 185
600/660
260
230x2
340-500
380/440
600/690
Split Legs Paramotor
HIGH Hook-In points
L/XL with
zipper extender
43410
1.590 (incl.)
185 and up
630/690/750
300
260x2
320-530
420/480/540
620/710
Split Legs Paramotor
LOW Hook-In points
S/M with
zipper extender
43500
1.590 (incl.)
Up to 185
600/660
260
230x2
340-500
380/440
420/480
Split Legs Paramotor
LOW Hook-In points
L/XL with
zipper extender
43510
1.590 (incl.)
180 and up
630/690/750
300
260x2
320-530
420/480/540
420/480/540
Universal Paramotor
Multisize with
zipper extender
41015
3.100 (incl.)
Up to 190
630/690
430
390
240-640
440/500
460/680/750
SLT Paramotor Harness
High Hook-Up points
Multisize with
zipper extender
28015
2.550 (incl.)
Up to 190
660/720
400
380
360-610
380/440
590/680
SLT Paramotor Harness
Low Hook-Up points
S/M with
zipper extender
420425
2.495 (incl.)
Up to 185
660/720
400
380
360-610
380/440
340/360
SLT Paramotor Harness
Low Hook-Up points
L/XL with
zipper extender
420426
2.495 (incl.)
180 and up
660/720
400
380
360-610
380/440
340/360
Trike Pilot
one size
49100
2.850 (incl.)
160-190
690
330+90
430
50
360
420-580
Trike Passenger
one size
49250
2.100 (incl.)
160-190
600
340
410
510
330
350
*Harness weight denotes the total weight of the harness including Standard parts supplied with the harness such as; Seat Plate, Airfoam Protector, vibration foam (PM harnesses), and if relevant, the optional Lexan Plate.
It excludes other optional accessories such as Cockpits, Stirrups, reserve parachutes, zip-on side pickets/reserve containers etc.
**Estimated Weight
The passenger harness is available in “one size fits all” – with zipper expander (zipper closed S/M size, zipper open L/XL size)
42500 – Passenger Harness
44030 – Pilot Stirrup/Footrest – to connect to Passenger harness (set L+R)
AP-100/2T – Al. karabiner 3 Ton double safety
AP-100/3T – Al. karabiner 3 Ton triple safety
Passenger Harness includes harness with seatplate and foam back protection (does not include Karabiners or Pilot Stirrup/Footrest)
