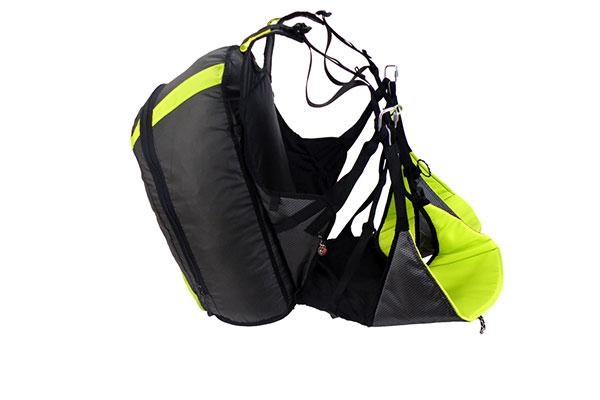

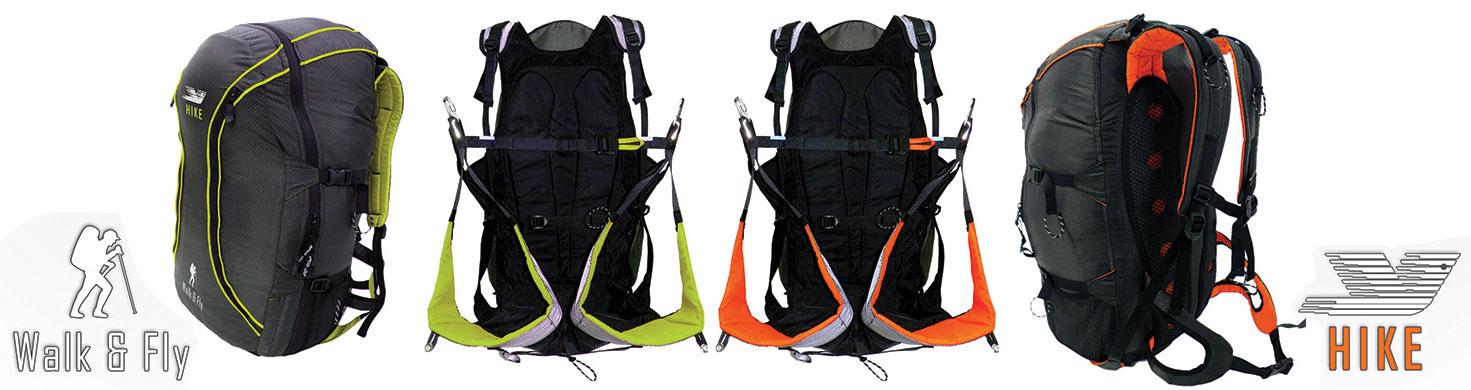

The HIKE harness is our ultra-light, reversible harness/backpack. Designed for maximum comfort while either flying or hiking. Split legs carefully crafted, and ergonomic back support will insure relaxed flying and hiking.
Great for long mountain treks and challenging XC flights. Ideal for speed flying and ridge soaring. Generous size glider bag and well padded back support.
Only 1.3 kg. making it one of the lightest harnesses in this category.
CERTIFICATION:
The Hike Harness is EN certified (EN1651:1999, EN12491:2015) when used in conjunction with the specific optional airbag from Apco (Product Code: 47035).
Attachable airbag for extra protection (See more in Protection Tab)
Split legs
Emergency parachute shoulder attachment points
Compression straps for volume adjustment
Loop and slide buckle on chest – one click strap in
Mesh side pocket

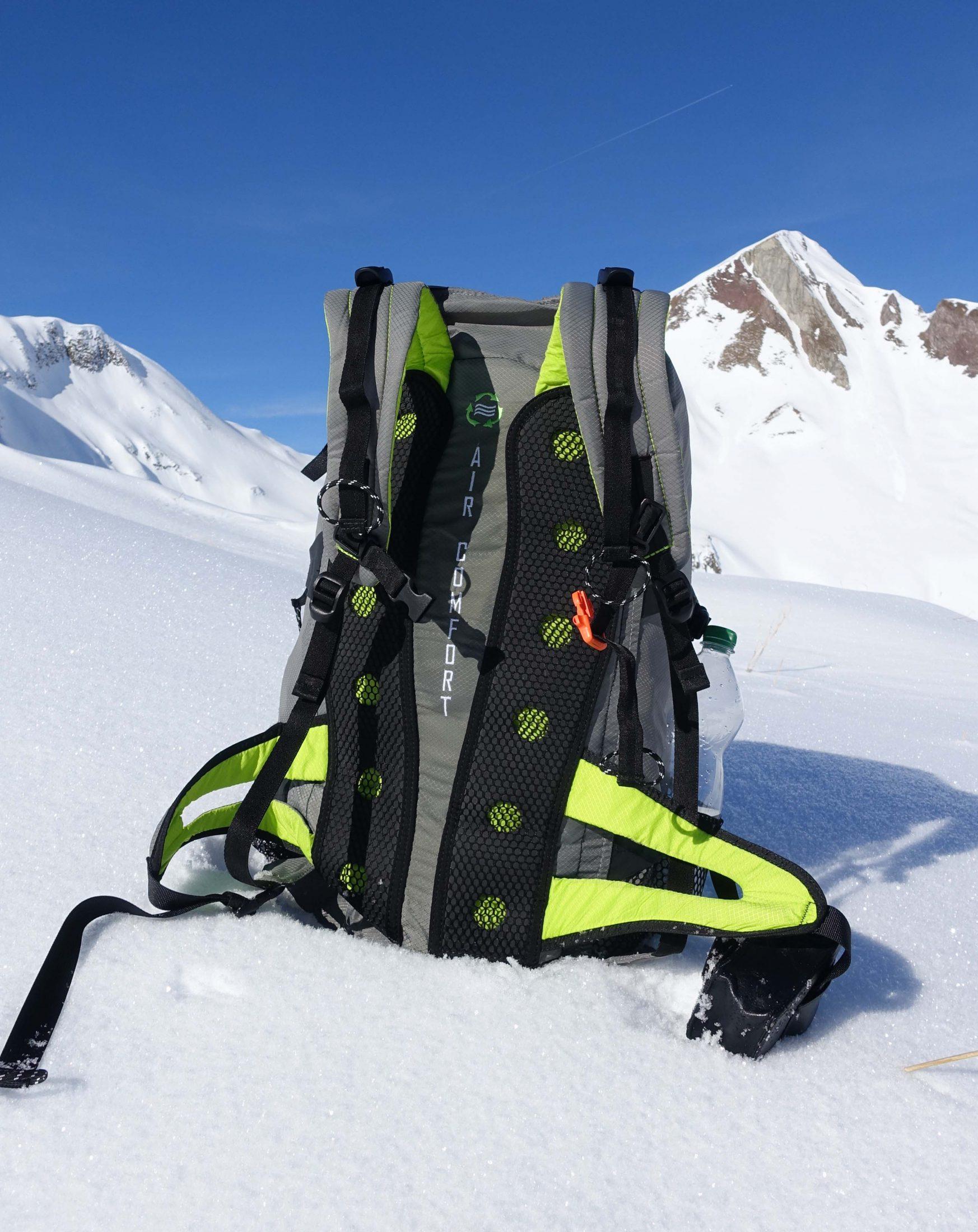

Ergonomic breathable back support
Generous volume to contain most solo wings [approx. 60 liter]
Attachment points for poles / mountain equipment
Adjustable shoulder and chest straps
Two-position lateral strap to adjust seat position
Weight – 1.3 kg.
New look high tech cloth
Speed bar ready
An optional Airbag can be fitted to the base of the Hike to improve pilot protection in case of a hard landing or accident

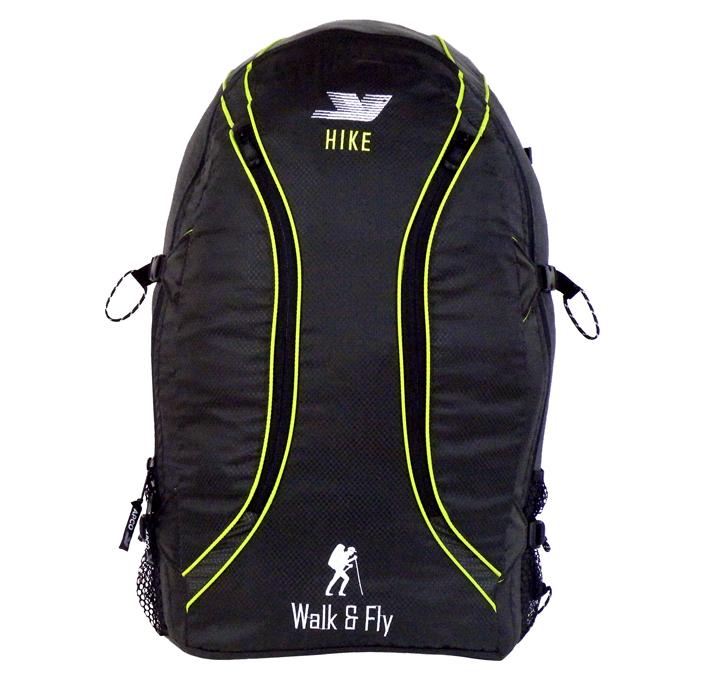

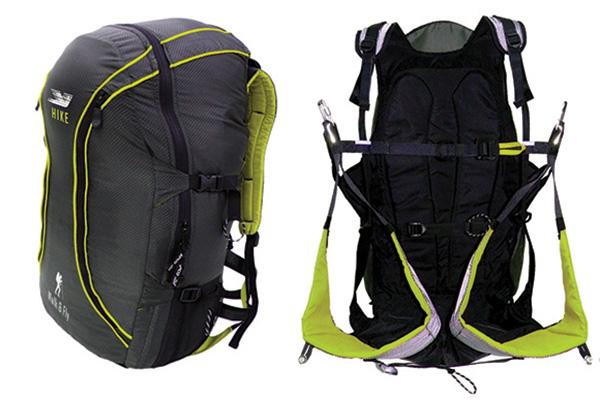

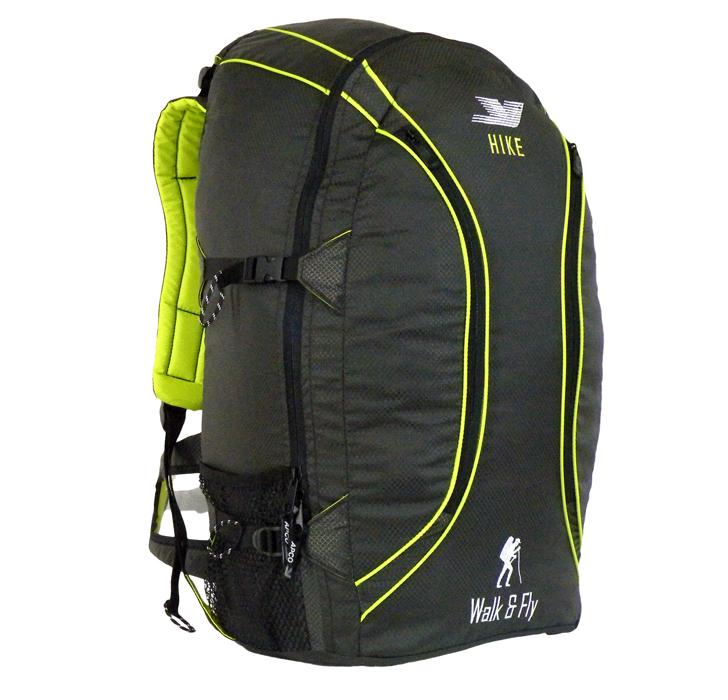

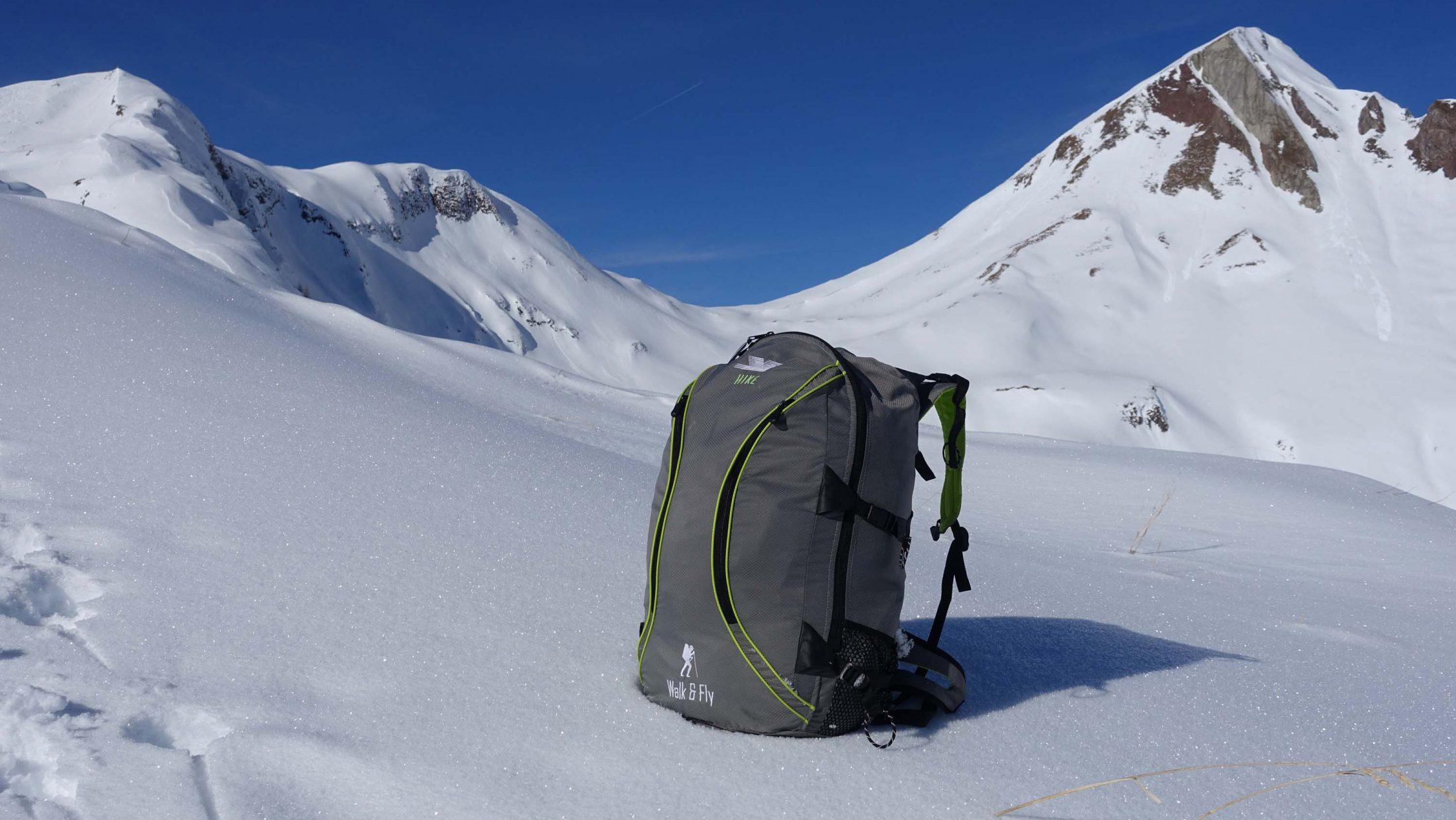

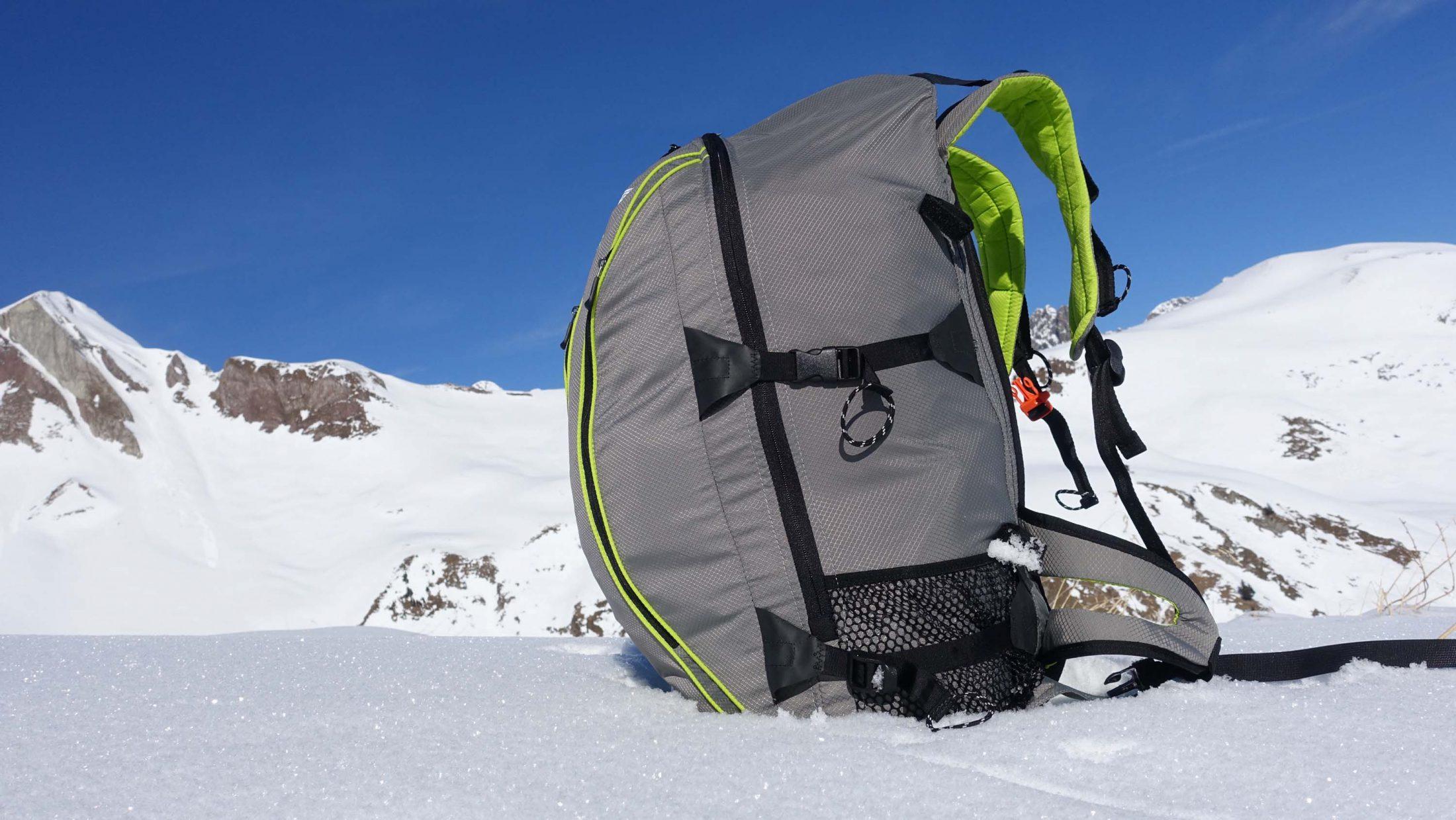

Reversible – Converts into comfortable Backpack, large enough to fit a regular paraglider and an open face helmet
Reversible – Converts into comfortable Backpack, large enough to fit a regular paraglider and an open face helmet
Size
One Size
Pilot Height [cm]
160 to 190
Back Length mm A
610
Seat Length B
430
Seat Width C
230 x 2
Distance between Karabiners D
295 - 490
Supported Back Length mm E
320
Hook-in Height F
420
Weight [Kg]
1.300
Certification
EN (when used in conjunction with optional Airbag)
120kg Max Pilot Weight
Dimension Sketch

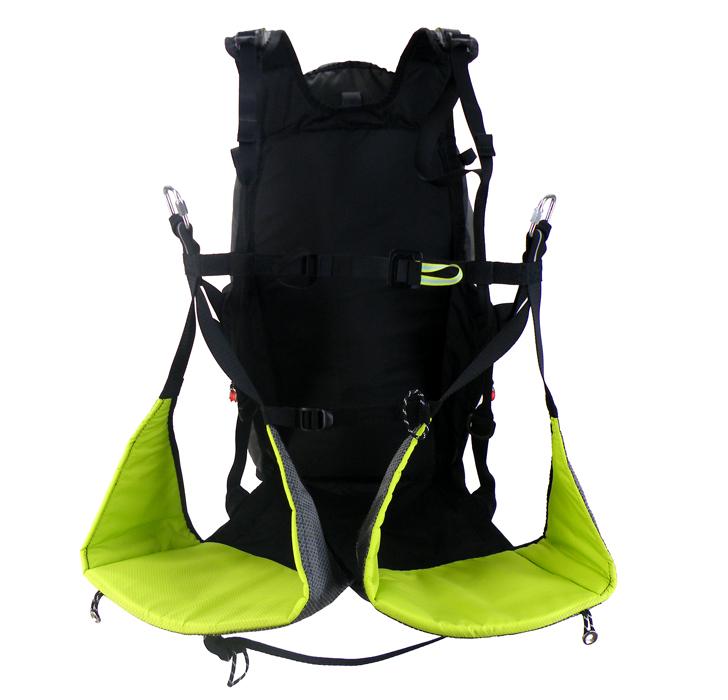

Black with Lime trim

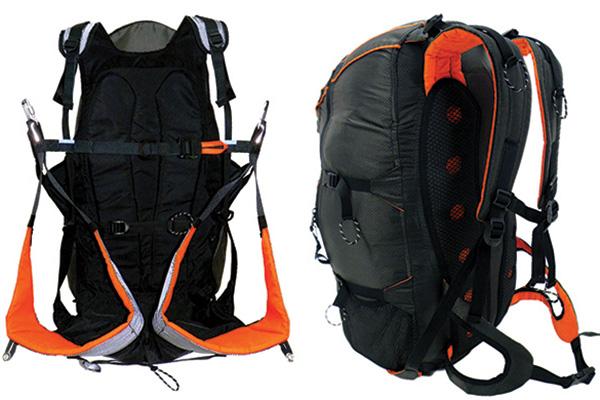

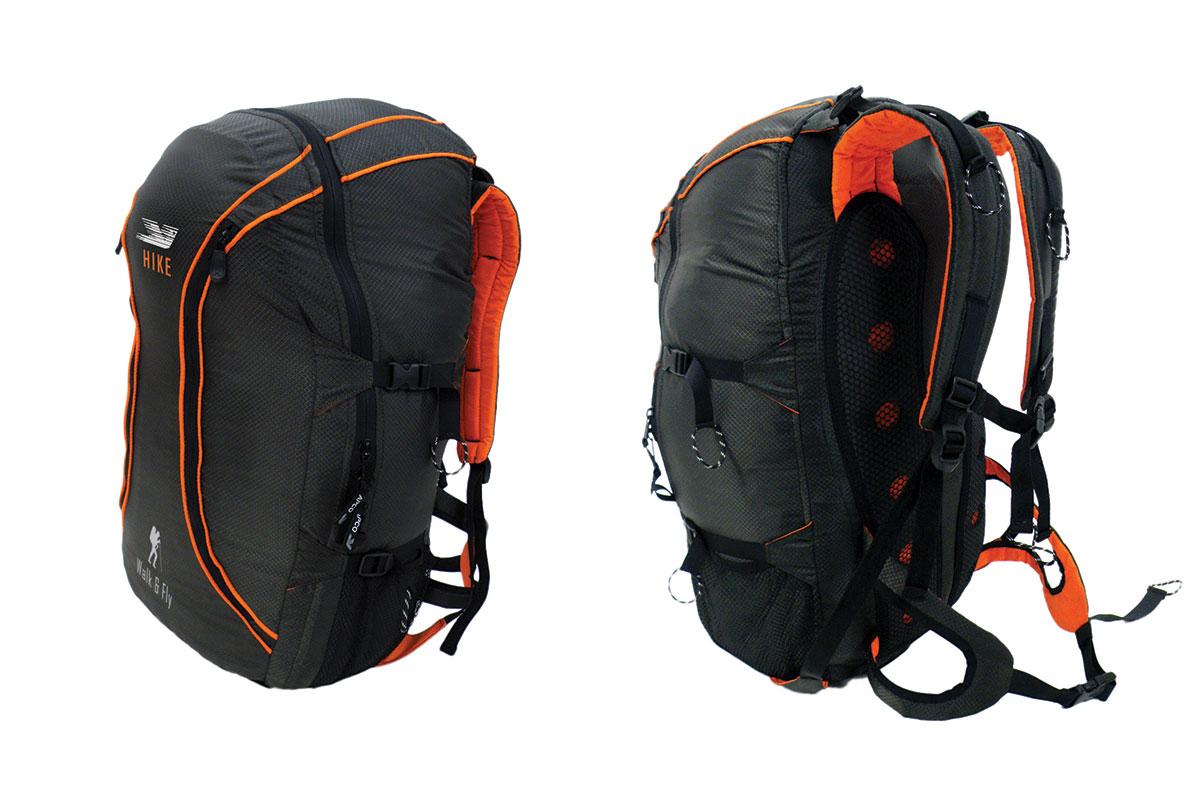

Black with Orange trim
Black with Orange trim
The HIKE has emergency parachute shoulder attachment points, and a variety of external reserve containers can be mounted on the harness. In addition, a optional Airbag can be fitted below the seat.
Pilot Protection

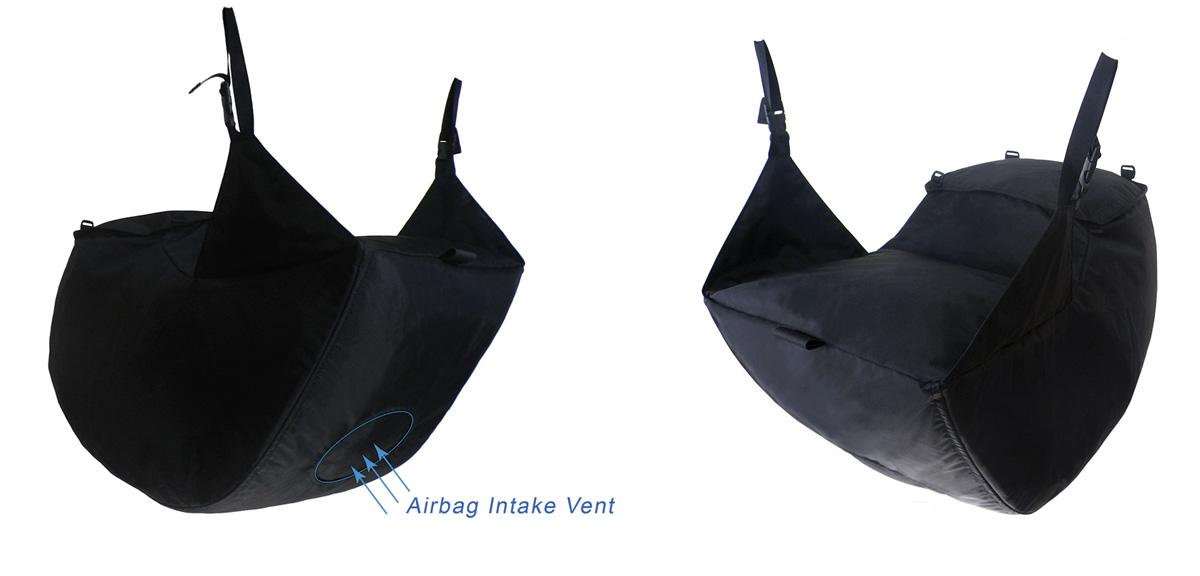

AirBagThe airbag is a separate unit to be ordered separately and can be attached to every HIKE harness.
It is a simple, light and inexpensive masterpiece – will be appreciated by every pilot/hiker.
Quick and simple attachment (see photo – red arrows indicate attachment points).
Only 220 gr.
No rigid elements – nothing to break
From extremely high density, light, durable Oxford nylon
Effective high volume airbag protection
Shaped for minimum drag and maximum airbag efficiency
Attractively priced – best value for money

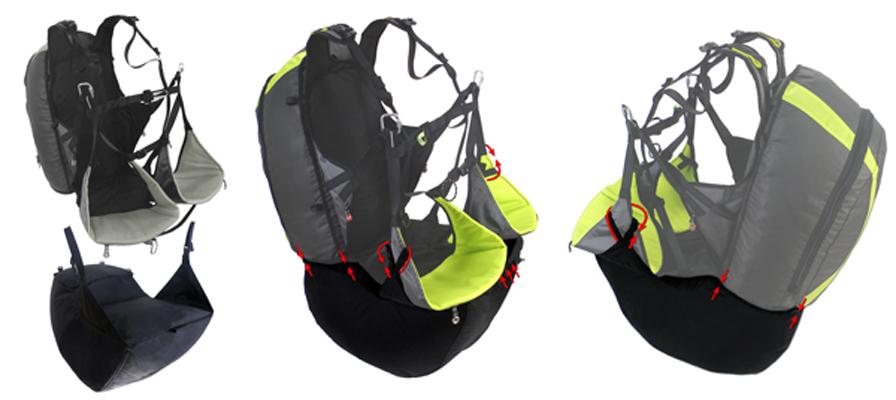

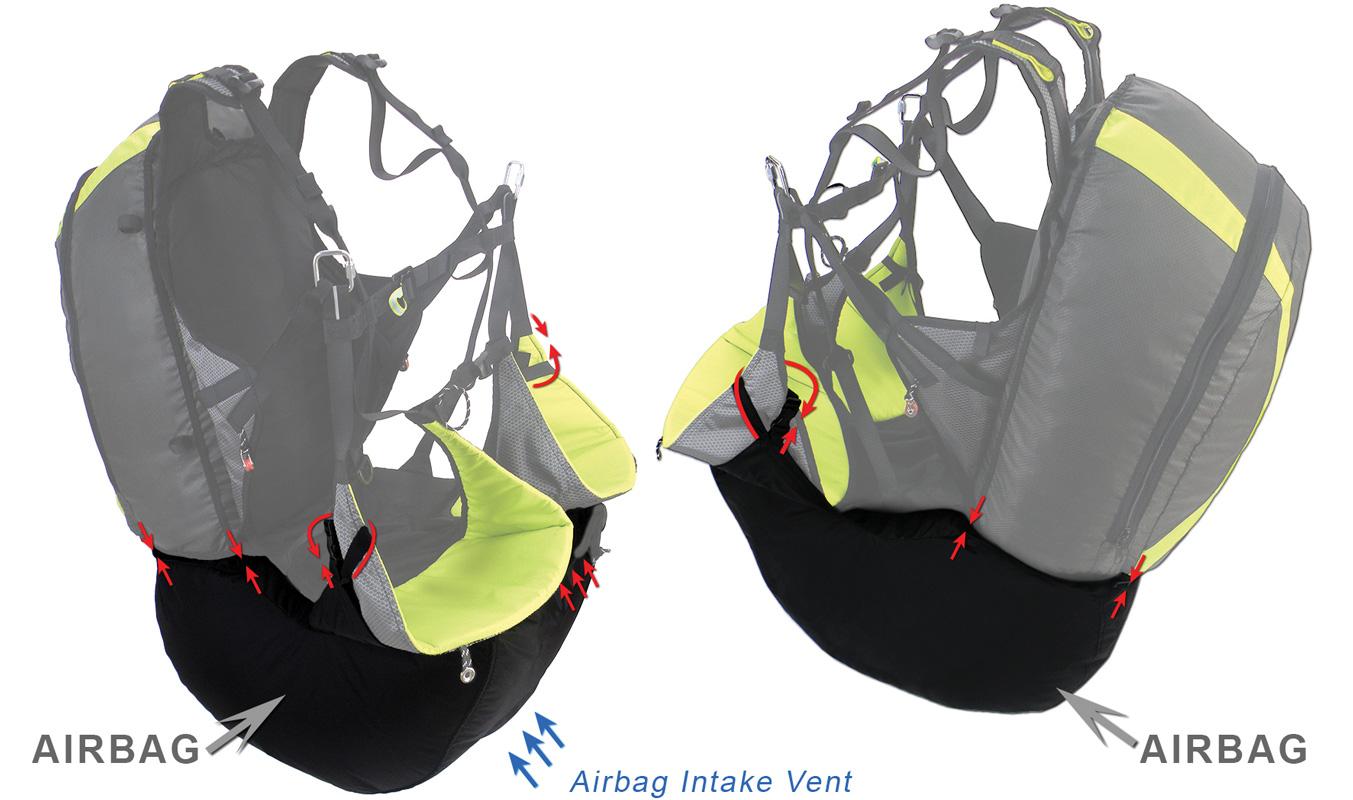

Quick and simple attachment – red arrows indicate attachment points

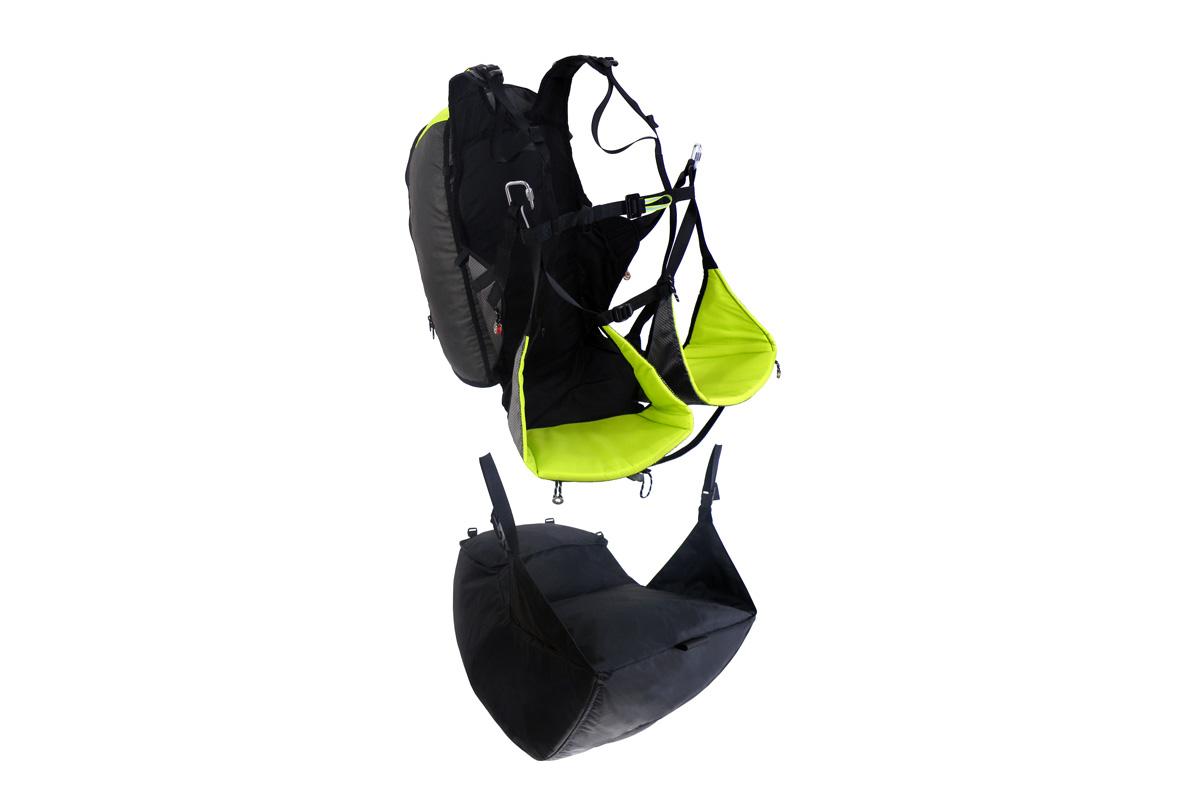

Airbag for Apco Hike Reversible Harness
Air bag
Air bag
How to fit the rescue on the Hike?
In order to connect parachute to the Hike you need an external container – either side or front container (For this harness usually take 81155SLT ).
In addition you need the 42025: Light Universal harness Bridle
The Reserve should be connected to the intended shoulder attachment points. The harness has Velcro Leads for routing the bridle up to the shoulder attachments.
The container should be placed wherever it is convenient for you on the front or on the side.
What is the bag volume?
The hike Bag is approximately 55 [Ltr].
Enough to fit a regular paraglider and an open face helmet
The quicklink 43121F is not suitable for emergency parachute harness connection!
Intended for use on light harnesses – connecting the wing to the harness only.
Reserve parachute should be connected to designated shoulder connection points.
Mayday 16 SLT, Mayday 18 SLT, Mayday 20 SLT – designed for pilots who wish to keep their equipment extremely light. Weight reduction for SLT was achieved by using state of the art materials – canopy cloth used is PN9 (the last, most sophisticated development in parachute cloth), as well as additional weight saving advanced design solutions.

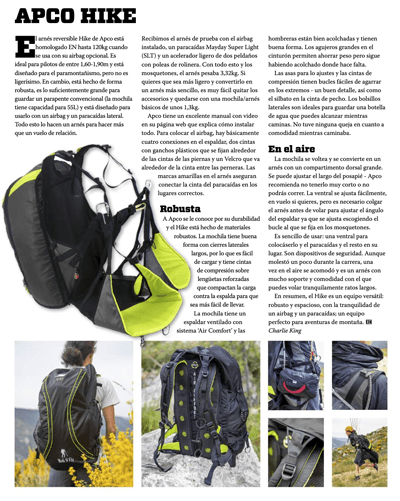

Cross Country en Español reviews the Apco Hike Harness
I’ve had the Hike harness now for a couple of weeks…
Source: Paragliding forum
Published by: Aaron (Aaron Richards)
Sent: Wed Jun 11, 2014 3:11 am
Subject: Apco Hike Harness
I’ve had the Hike harness now for a couple of weeks. Flown it with my speedwing and paraglider wing. Very comfortable harness. There was none of the uncomfortable seating position (wedgie effect) that I had on my older light weight harness. read more
Harnesses – Sizing Table
Harness
Size
Code
Harness Weight [Kg]*
Pilot Size (cm)
Back Length (mm) - A
Seat Length (mm) - B
Seat Width (mm) - C
Dist. between Karabiners (mm)- D
Supported Back (mm) - E
Hook-in Height (mm) - F
Pod Length - G
First III
Multisize with
zipper expander
48133
2.145 (incl.)
140-190
Hike
one size
47030
1.300 (incl.)
160 to 190
610
430
230 x 2
295 - 490
320
420
Chairbag Integral V
one size
46030
3.240 (incl.)
160-185
700
390
380
385 - 575
450
430
Ritma
S/M
45050
3.900 (incl.)
Up to 170
680
400
390
420 - 615
360
420
Ritma
L/XL
45100
4.000 (incl.)
170-185
750
435
400
420 - 615
400
415
Ritma
XXL
45150
4.100 (incl.)
180 and up
750
435
400
420 - 615
400
405
Spark II
S/M
43102
5.120 (incl.)
Up to 170
740
370
350
375 - 575
400
390
Spark II
L/XL
43202
5220 (incl.)
170-185
775
410
390
375 - 575
420
415
Spark II
XXL
43302
5320 (incl.)
180 and up
790
470
400
375 - 575
420
440
Kitto
S / M
44310
2710 (incl.)
up to 185
Kitto
L / XL
44320
2840 (incl.)**
180 - 205
Swift Race
M/L
44610
5.950 (incl.)
up to 190
640
410
320
395 - 540
360
440
900 - 1000
Swift Race
XL
44620
6.150 (incl.)
185 and up
700
460
340
360 - 535
370
480
1000 - 1100
Swift Sport
M/L
44630
5.310 (incl.)
up to 190
640
410
320
395 - 540
360
440
900 - 1000
Swift Sport
L/XL
44635
5.510 (incl.)
185 and up
700
460
340
360 - 535
370
480
1000 - 1100
Swift Zero
M/L
44640
4910 (incl.)
up to 190
640
410
320
395 - 540
360
440
900 - 1000
Swift Zero
L/XL
44645
5.110 (incl.)
185 and up
700
460
340
360 - 535
370
480
1000 - 1100
2 Light
one size
42610
1.300 (incl.)
160 to 190
610
430
230 x 2
295 - 490
320
420
Tandem Pilot Harness
one size
42400
4.500 (incl.)
Up to 195
Tandem Passenger Harness
one size
42500
3.300 (incl.)
a wide range
of passenger sizes
Split Legs Paramotor
HIGH Hook-In points
S/M with
zipper extender
43400
1.590 (incl.)
Up to 185
600/660
260
230x2
340-500
380/440
600/690
Split Legs Paramotor
HIGH Hook-In points
L/XL with
zipper extender
43410
1.590 (incl.)
185 and up
630/690/750
300
260x2
320-530
420/480/540
620/710
Split Legs Paramotor
LOW Hook-In points
S/M with
zipper extender
43500
1.590 (incl.)
Up to 185
600/660
260
230x2
340-500
380/440
420/480
Split Legs Paramotor
LOW Hook-In points
L/XL with
zipper extender
43510
1.590 (incl.)
180 and up
630/690/750
300
260x2
320-530
420/480/540
420/480/540
Universal Paramotor
Multisize with
zipper extender
41015
3.100 (incl.)
Up to 190
630/690
430
390
240-640
440/500
460/680/750
SLT Paramotor Harness
High Hook-Up points
Multisize with
zipper extender
28015
2.550 (incl.)
Up to 190
660/720
400
380
360-610
380/440
590/680
SLT Paramotor Harness
Low Hook-Up points
S/M with
zipper extender
420425
2.495 (incl.)
Up to 185
660/720
400
380
360-610
380/440
340/360
SLT Paramotor Harness
Low Hook-Up points
L/XL with
zipper extender
420426
2.495 (incl.)
180 and up
660/720
400
380
360-610
380/440
340/360
Trike Pilot
one size
49100
2.850 (incl.)
160-190
690
330+90
430
50
360
420-580
Trike Passenger
one size
49250
2.100 (incl.)
160-190
600
340
410
510
330
350
*Harness weight denotes the total weight of the harness including Standard parts supplied with the harness such as; Seat Plate, Airfoam Protector, vibration foam (PM harnesses), and if relevant, the optional Lexan Plate.
It excludes other optional accessories such as Cockpits, Stirrups, reserve parachutes, zip-on side pickets/reserve containers etc.
**Estimated Weight
47030 – HIKE
47035 – AIRBAG
43107B – Air Extreme Ball bearing Pulleys (optional)
43121F – 2 Karabiners: Square rapide maillon #5 (optional)*
*The 43121F is not recomended for emergency parachute harness connection
