Mayday Range Overview

null

The Mayday Range of Rescue Systems meets the needs of every pilot.

SQUARES

Available in:

ROGALLOS

Available in:

HIGH CAPACITY ROUNDS

Available in:

Complete Mayday Range Specifications

Choose Your Mayday here:

MaydayArea [m2]GoresWeight* [kg]Volume
[cc]
Packed Size [cm]
Length x Width x Height
Sink Rate [m/s]
(@ max Load)
Max Load [kg]gr / kg (Load)***Certification
Mayday Square25161.010300020.0x19.0x7.05.4 @100 Kg
5.72 @120 Kg
1209.16EN/LTF Certification - 100kg
EN Load/Drop test - 120 kg
MD 16 SLT
Super Light Round
23161.220310024.5x18.5x11.56.1510012.20EN Load/Drop Test by Air Turquoise
MD 16 LT
Light Round
23161.490355027.0x21.0x10.06.1510014.90EN Load/Drop Test by Air Turquoise
MD 16
Regular Round
23161.890400028.5x23.0x14.06.310617.83DHV
GS-02-0004-88
MD 18 SLT
Super Light Round
30.4181.597395028.5x22.5x12.05.1**11513.89EN Certification EP021.2009
MD 18 LT
Light Round
30.4181.922480031.0x22.5x13.05.112015.6LTF
RG 061.2012
MD 18
Regular Round
30.4182.220495032.0x22.5x15.05.412018.50SHV
PS0992.003
MD 20 SLT
Super Light Round
37.5202.083475031.0x22.0x12.54.48**13014.80EN Certification
E.P022.2009
MD 20 LT
Light Round
37.5202.300500032.0x23.0x12.54.48**14016.43EN Certification
EP056.2012
MD 20
Regular Round
37.5202.690540032.0x23.0x135.416016.85AFNOR/CEN
200143AP
GMD SLT
Superlight Rogallo
36161.950500030.5x22.0x13.54 m/s@(90kg)
4.9m/s@(130Kg)
60-13015.00EN Certification
EP057.2012
GMD
Steerable Rogallo
39162.900595033.0x24.0x15.52.8 m/s@(90kg)
3.2m/s@(130Kg)
60-13022.31EN Certification
EP009.2007
MD Bi
Round Tandem Reserve
47183.250610033.5x27.0x13.55.420016.25AFNOR
PS98228AP
MD 28UL
High Capacity Round Reserve for Trikes
64284.0001260037.0x23.0x20.06.334011.76EN Load test
12491:2001
Packed Size vs. Volume:
The volume is measured by water displacement, and represents the smallest recommended packed volume, or the volume of the smallest recommended container to be used for the reserve. The specified volume is therefore far lower than the calculated volume that would be derived from the specified measurements.
The Packed Size measurement represents the measurements of the factory packed, but not compressed reserve, ie. the max dimension for each axis, and in its specified deployment bag, as shipped from apco.
* Weight Excludes weight of optional long bridle for Hang-glider version:
Add 190gr for Hanggliding (HG) Extension Bridle (Code: 43006), or
Add 550gr for MD Bi HG Bridle (Code: 43002L)
** Sink Rate as measured by Air Turquoise test laboratory
Stability rating by Air Turquoise (1 bad - 5 excellent)
*** Gram per [Kg] Load
This is a unit that makes it easy to compare Reserves.
The unit is calculated by dividing the weight of the reserve, by its max load rating. The lower the number, the lighter the reserve is for its carrying capacity.

Mayday Accessories

Internal Deployment Bags

CodeCompatible withDescriptionPictureUse

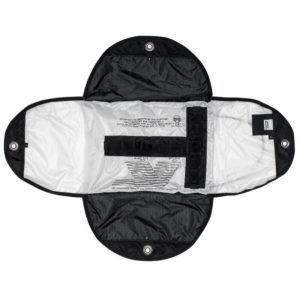

44120TMAYDAYS 16 and 18 regularMAYDAY DEP. BAG FOR USE INSIDE PG HARNESS WITH INTEGRAL E.P. CONTAINER OR FOR USE WITH EXTERNAL CONTAINERPG / PPG

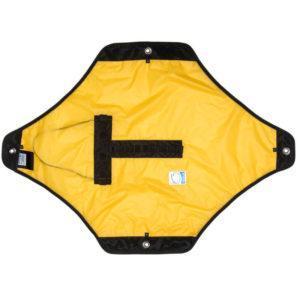

44120LTMAYDAYS 20, BI + G-MD regularMAYDAY DEP. BAG FOR USE INSIDE PG HARNESS WITH INTEGRAL E.P. CONTAINER OR FOR USE WITH EXTERNAL CONTAINERPG / PPG
44120SLTMAYDAYS16LT, 16/18 SLT and MAYDAY SQUAREMAYDAY DEP. BAG FOR USE INSIDE PG HARNESS WITH INTEGRAL E.P. CONTAINER
OR FOR USE WITH EXTERNAL CONTAINER
PG / PPG
44126MAYDAYS 18/20 LT, 20 SLT and G-MD SLTMAYDAY DEP. BAG FOR USE INSIDE PG HARNESS WITH INTEGRAL E.P. CONTAINER OR FOR USE WITH EXTERNAL CONTAINERPG / PPG
44130MAYDAYS 28 ULDEP. BAG FOR MAYDAY 28 ULPPG

External Containers

CodeCompatible withDescriptionPictureUse
80016Mayday Square.
Mayday Superlight (SLT) 16/18/20
Mayday Light (LT) 16 & 18
Mayday Classic (MD) 16
Other Reserves from 3000cc to 5000cc in volume (requires use of APCO internal deployment bag)
SMALL UNIVERSAL RESERVE CONTAINER WITH FLIGHT DECKPG / PPG
80017Mayday Light (LT) 20
Mayday Classic (MD)18 & 20
Guided Mayday GMD & GMD SLT
Mayday Tandem (BI)
Other Reserves from 5000cc to 6500cc in volume (requires use of APCO internal deployment bag )
LARGE UNIVERSAL RESERVE CONTAINER WITH FLIGHT DECKPG / PPG
81155SLTMAYDAYS 16/18/20 SLT + 16/18/20 LT +
GMD SLT +
Mayday Square
FRONT EXTERNAL BAG MAYDAY LIGHT RANGEPG / PPG
81155MAYDAYS 16 and 18 regularEXTERNAL BAG MAYDAY FLAT PACKEDPG / PPG
81955MAYDAYS 20 and BI regularEXTERNAL BAG MAYDAY FLAT PACKEDPG / PPG
80054MAYDAYS 16/18/20 SLT +
16/18/20 LT + 16/18/20/G-MD regular
+ G-MD SLT
EXTERNAL E.P. CONTAINER FOR USE WITH FLIGHT DECKPG / PPG
80026MAYDAYS 16/18/20 SLTPARAMOTOR CONTAINER (SIZE S)PPG
80028MAYDAY 28 ULPARAMOTOR CONTAINER (SIZE XL)PPG
80029MAYDAYS 16/18/20/BI/G-MD reg 16/18/20 LT + 16/18/20/G-MD SLTZIPPED ON E.P. COMPARTMENT FOR: UNIVERSAL / SLT HIGH / LOW HARNESSESPPG
80039MAYDAYS 16/18/20/BI/G-MD reg 16/18/20 LT + 16/18/20/G-MD SLTZIPPED ON E.P. COMPARTMENT FOR: SPLIT LEGS HARNESSESPPG

** ALL EXTERNAL CONTAINERS SUPPLIED WITHOUT LIGHT / UNIVERSAL BRIDLE (42025/42024) – BRIDLE SHOULD BE ORDERED SEPARATELY WHEN NECESSARY
