Trike pilot Harness

null

Universal – multiple connection points to accommodate almost all trikes on the market

An engineering masterpiece is the one that simply works. The Trike Pilot-Passenger Harness Set, is exactly that – a simple, straight-forward solution for any trike.
Comfortable and safe, this set, does the job in an easy to use, efficient way. Elegant in its simplicity the Trike Pilot-Passenger harnesses will answer all your needs.;

UNIVERSAL in their design the Pilot-Passenger Harnesses will fit most trikes in use today.

The Pilot-Passenger Harnesses are designed to be used as part of an integrated set. Synergized to work perfectly together.

Of course each harness can be used on its own, combined they will provide the ultimate solution.

Fly Apco – KISS the pilot!

Wikipedia: “KISS” is an acronym for – Keep It Simple, Stupid

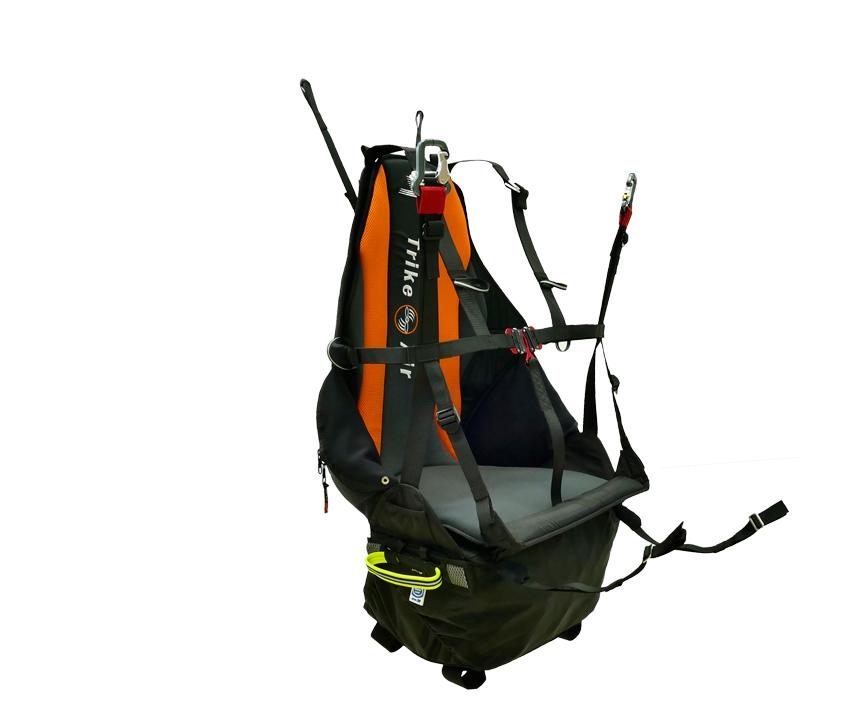

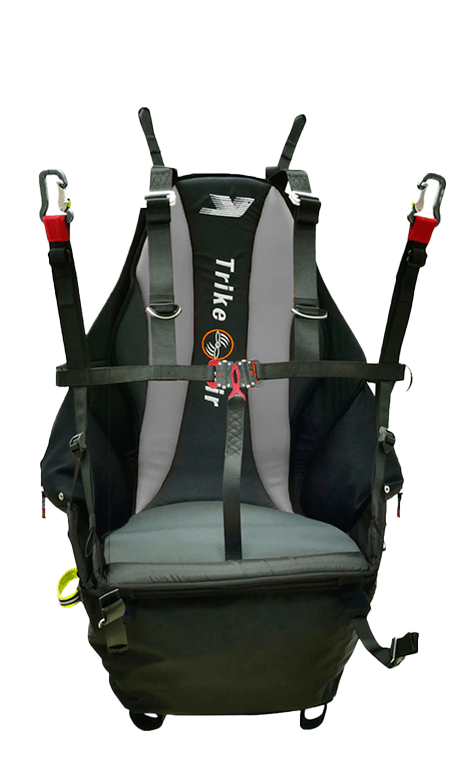

Extremely comfortable, safe, and light, the Pilot Harness was designed for ease of use with maximum protection.

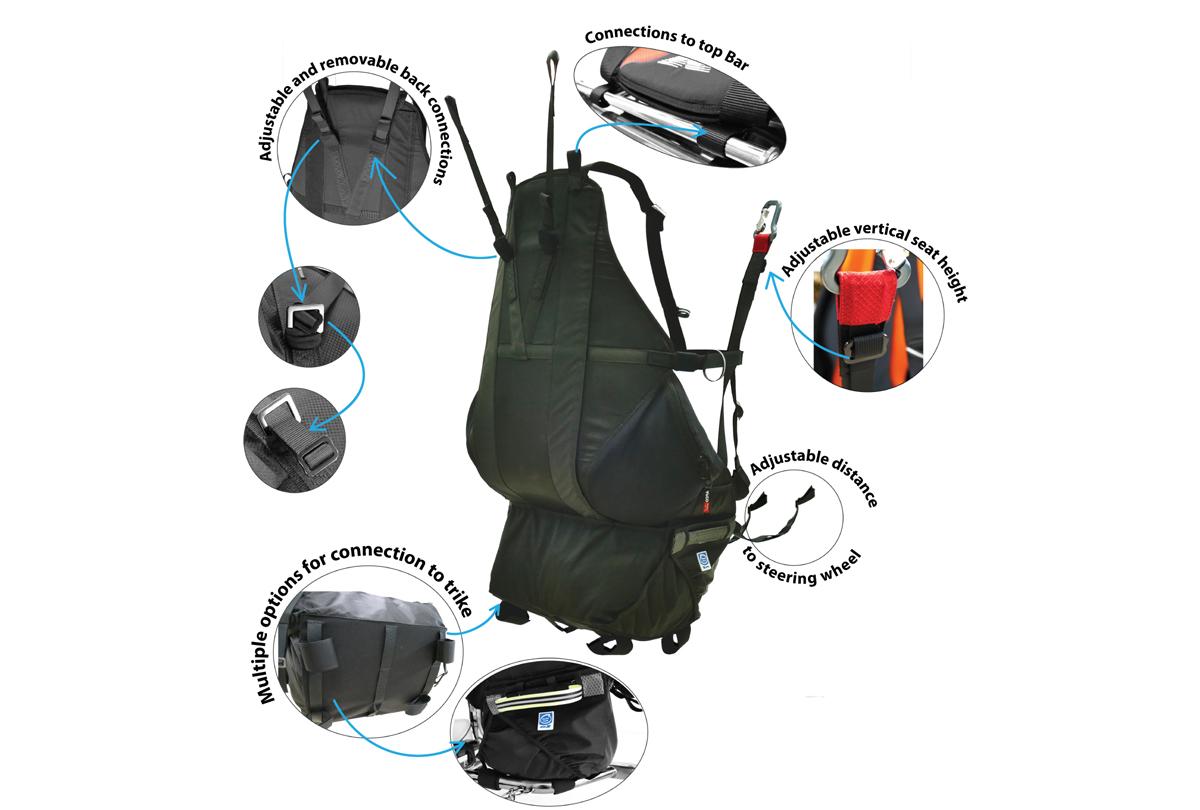

Universal design – the Pilot Harness has multiple connection points to connect to the trike’s frame, allowing compatability with almost any trike.

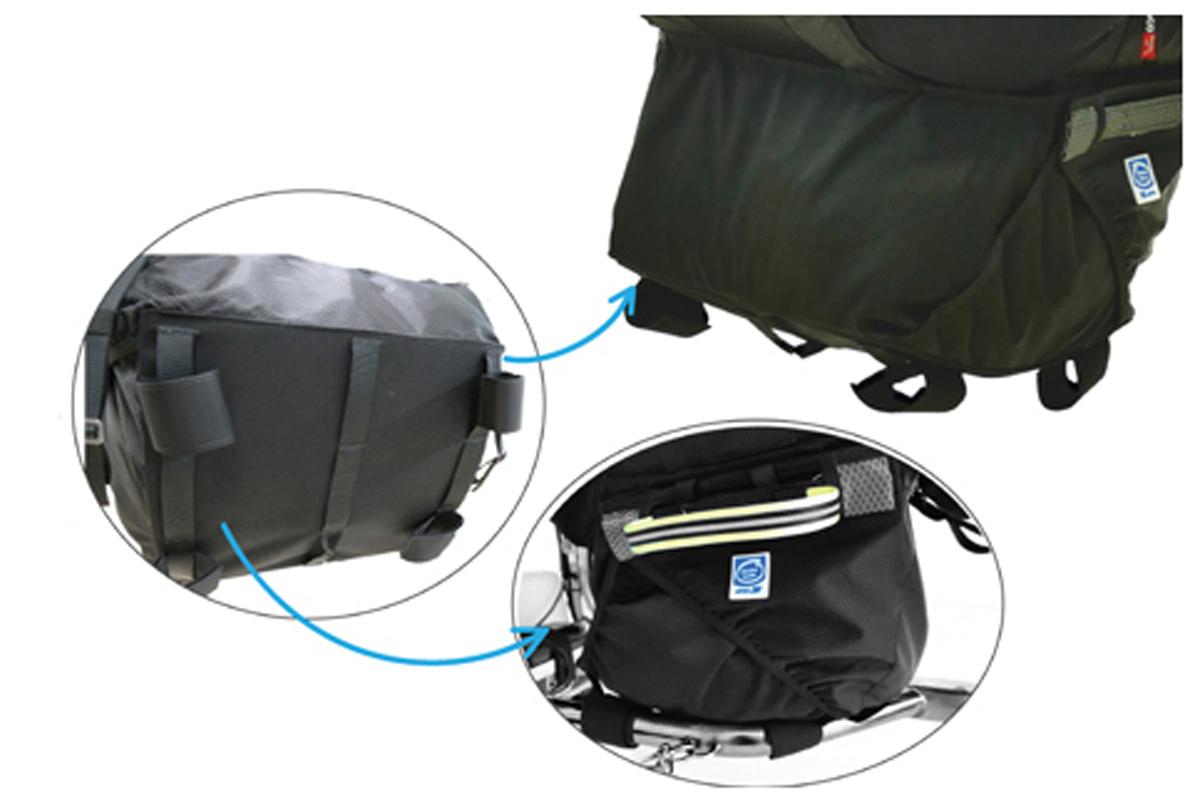

Safe – An integrated Reserve container designed for Apco’s Mayday 28 UL for up to 340 kg. This container is secured to the bottom of the trike for maximum stability of the container, allowing for easy parachute deployment. The deployment handle is switchable between the left or right side in accordance to the pilots preference.

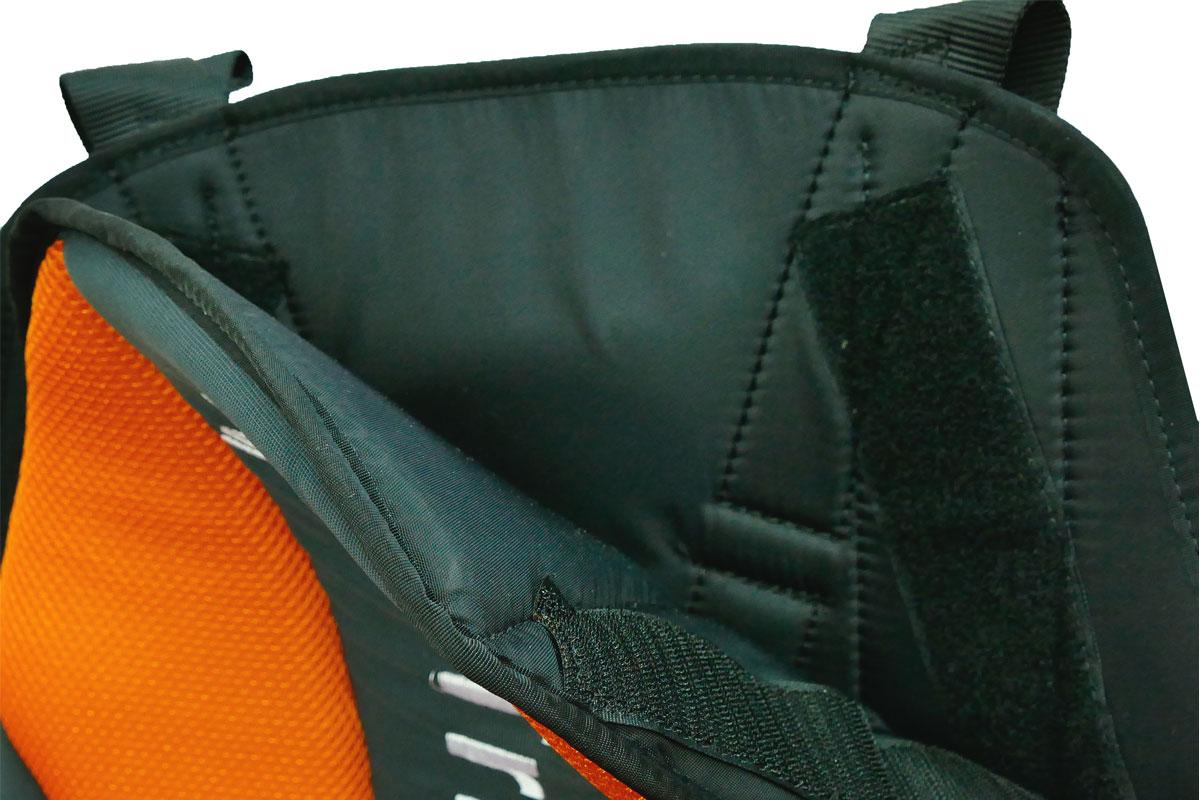

Comfort – Fully adjustable for maximum comfort, it offers custom adjusting each harness to the pilot’s liking. Removable one piece seat and back cushion insure pilot comfort on the longest flights.

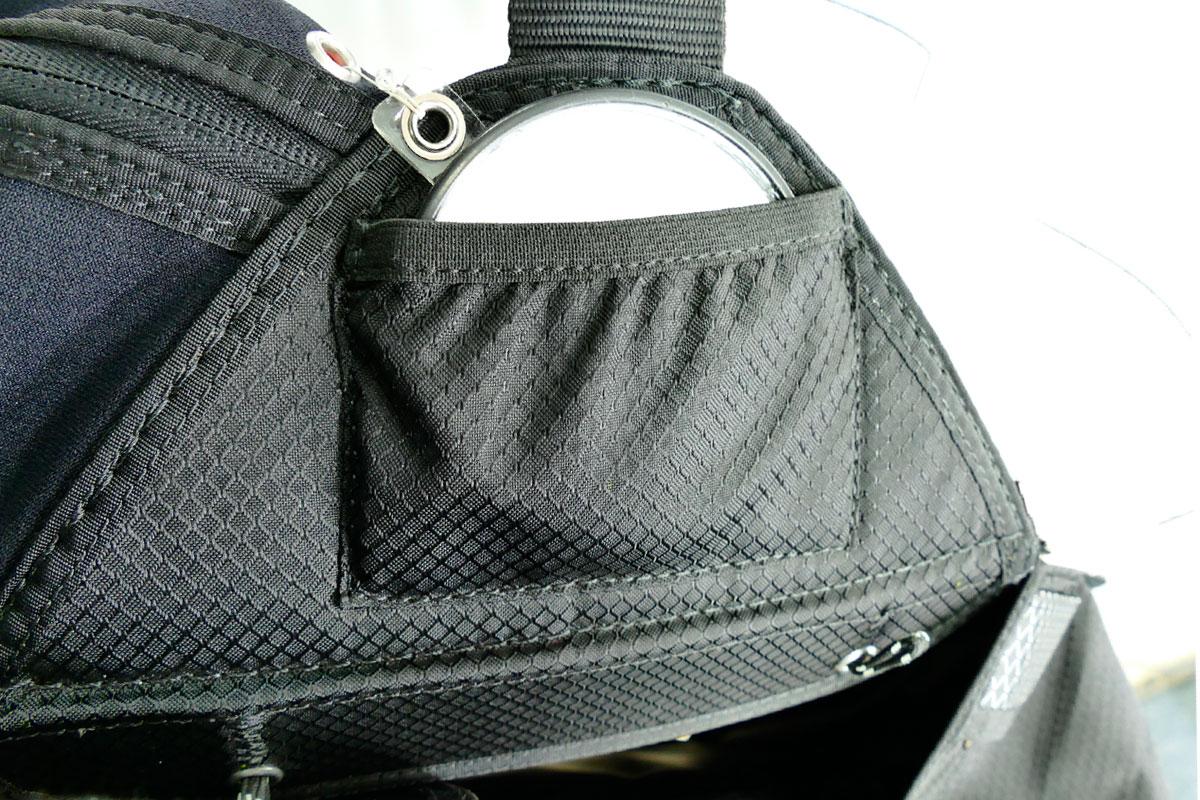

2 Double Side pockets envelop the pilot for added support and allow ample space with in flight accessibility.

Smart – a connected chest & leg buckle system acts as a “No Forget” fail safe closing method. protecting the pilot from ever taking off unsecured.

Strong – Wide 40 mm polyester webbings are used to secure the pilot to the harness and the harness to the frame.

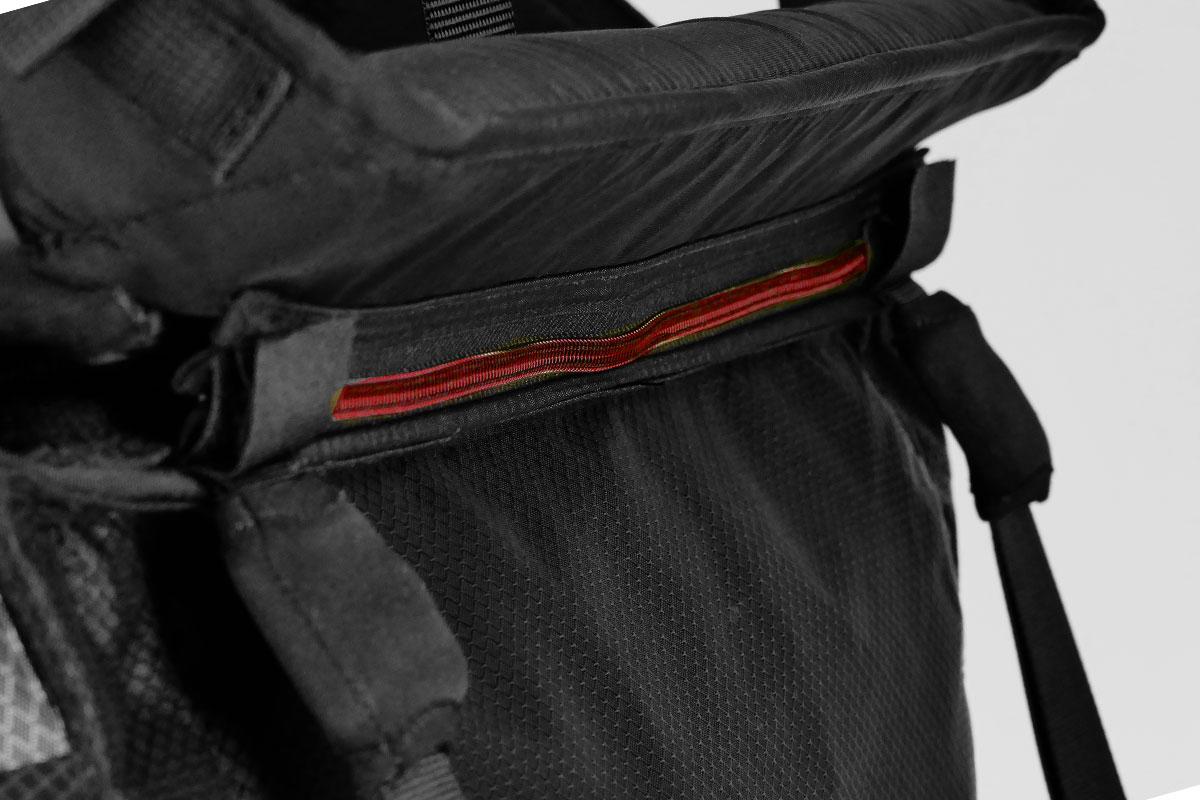

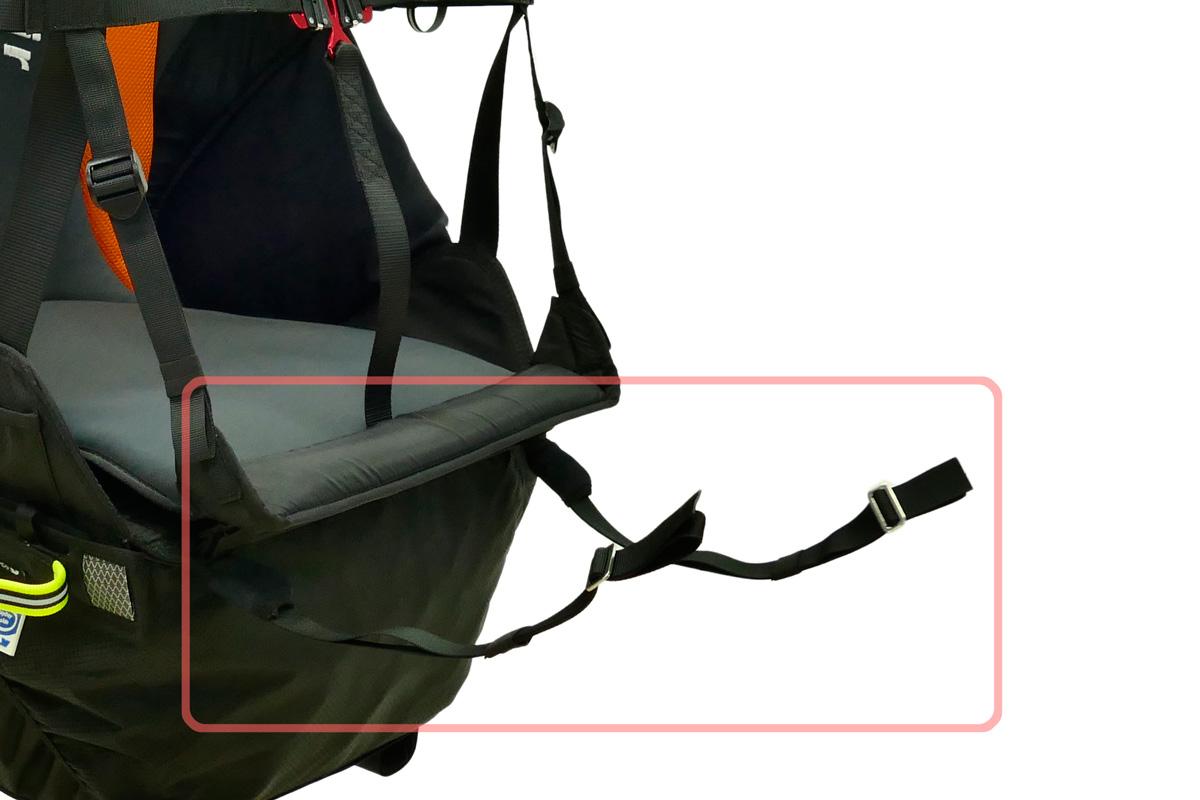

Sizing -The harness has multiple adjustment points to fit a wide range of pilots with removable front flap for adjusting the seat depth.

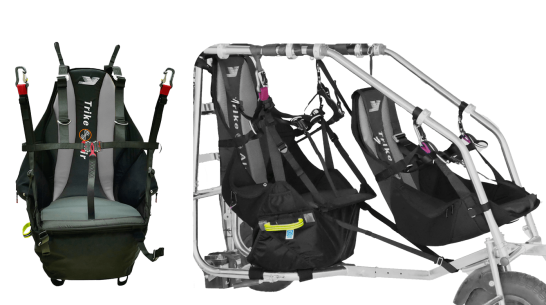

Getting in and out of harness is extremely easy. The Pilot Harness integrates together perfectly with the matching Passenger Harness but will also be perfect for most single seater trikes.

**Custom branding, colors and your logo are available for bulk orders**

0%

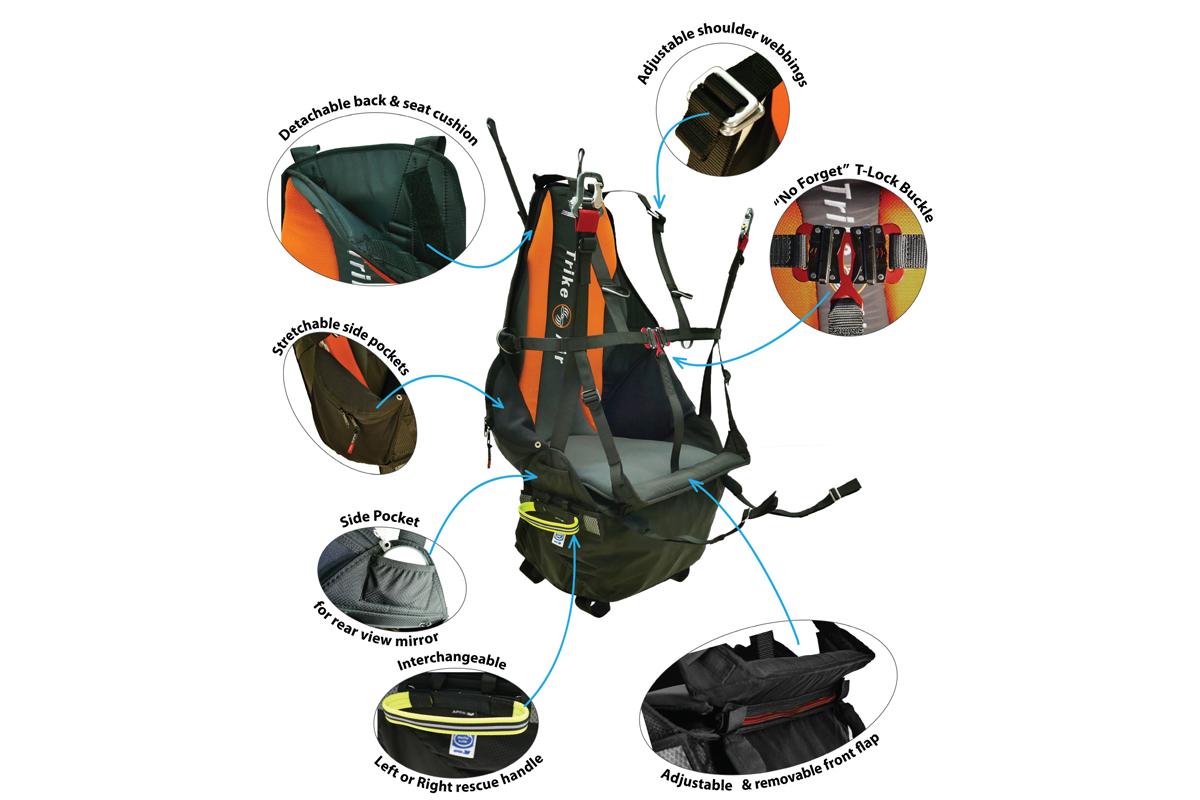

    • Integrated under the seat reserve container

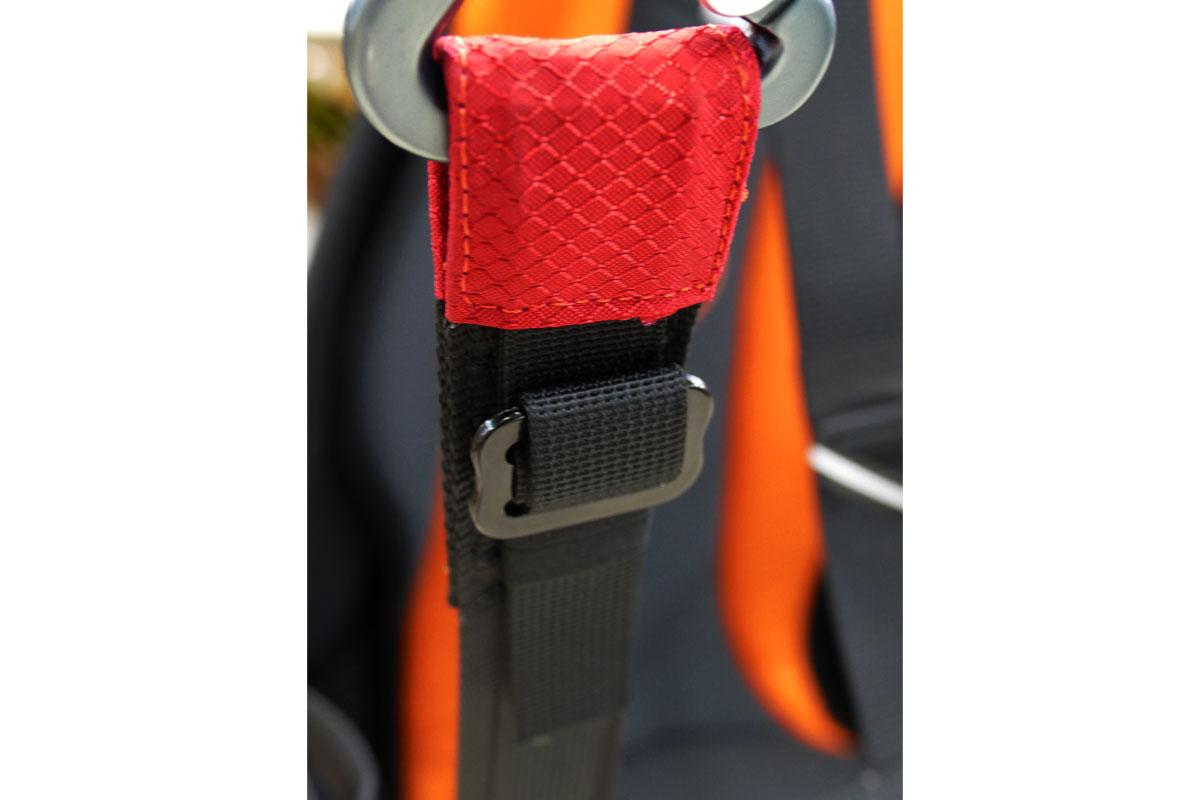

    • Loop and slide mechanism for quick adjustment or disconnecting the harness from the trike.
    • Adjustments – multiple options to change any geometry features of the harness.
    • 7075 T6 Aluminum aviation grade hardware
    • High tenacity, diamond shape Nylon fabric, for durability and aesthetics.
    • Universal – multiple connection points to accommodate almost all trikes on the market
    • + much, much more…
    Weight
    Weight of Pilot Harness2.15 [Kg]
    Standard seatplate0.4 [Kg]
    One piece back and seat cushion0.3 [Kg]
    Pilot Harness Total2.85 [Kg]

    An integrated Reserve container designed for Apco’s Mayday 28 UL for up to 340 kg. This container is secured to the bottom of the trike for maximum stability of the container, allowing for easy parachute deployment. The deployment handle is switchable between the left or right side in accordance to the pilots preference.

    Frequently Asked Questions:

    Send us your questions: Contact us

    Optional Accessories

    Mayday 28 UL

    $999.00$1,133.00

    Mayday 28 UL capable of safely handling loads of up to 400kg. Formally load tested by EN approved laboratory – Air Turquoise – confirming safe opening and descent with maximum load of 340 kg.

    Harnesses – Sizing Table

    HarnessSizeHarness Weight (kg)CodePilot Size (cm)
    First IIIMultisize with
    zipper expander
    2.14548133140-190
    Hikeone size1.30047030160 to 190
    Chairbag Integral Vone size2.95046030160-185
    RitmaS/M3.20045050Up to 170
    RitmaL/XL3.20045100170-185
    RitmaXXL3.20045150180 and up
    Edge IIS/M3.50042102Up to 170
    Edge IIL/XL3.55042202170-185
    Edge IIXXL3.60042302180 and up
    Spark IIS/M4.55043102Up to 170
    Spark IIL/XL4.60043202170-185
    Spark IIXXL4.70043302180 and up
    SwiftM/L6.444610Up to 190
    SwiftXL190 and up
    Tandem Pilot Harnessone size3.50042400Up to 195
    Tandem Passenger Harnessone size2.70042500a wide range
    of passenger sizes
    Split Legs Paramotor
    HIGH Hook-In points
    S/M with
    zipper extender
    1.50043400Up to 185
    Split Legs Paramotor
    HIGH Hook-In points
    L/XL with
    zipper extender
    1.50043410185 and up
    Split Legs Paramotor
    LOW Hook-In points
    S/M with
    zipper extender
    1.50043500Up to 185
    Split Legs Paramotor
    LOW Hook-In points
    L/XL with
    zipper extender
    1.50043510180 and up
    Universal ParamotorMultisize with
    zipper extender
    2.70041015Up to 190
    SLT Paramotor Harness
    High Hook-Up points
    Multisize with
    zipper extender
    2.00028015Up to 190
    SLT Paramotor Harness
    Low Hook-Up points
    Multisize with
    zipper extender
    1.980420415Up to 190
    Trike Pilotone size2.85049100160-190
    Trike Passengerone size2.10049250160-190

    The pilot harness is available in “one size fits all” – with zipped on front seat flap

    • 49100 – Pilot Harness

    Pilot Harness includes seatplate and removable one piece back and seat cushion (does not include Karabiners)
