Paramotor Harness

We at APCO long ago recognised the need for a specialised paramotor harness which could be used by paramotor enthusiasts worldwide and be compatible with a wide number of different paramotor frames.

Finally, we are launching a new product – Universal Paramotor Harness – which is a great improvement over our former paramotor harness.

Above all we took care so the harness has all necessary provision to be adapted to virtually any paramotor frame on the market – both for low and high hook in points.
Then we made sure that the harness was even more comfortable with longer and generously padded shoulder straps. Side pockets were added and the harness was made to be universal – one size fits all with zipper expander (zipper closed S/M size, zipper open L/XL size).

0%

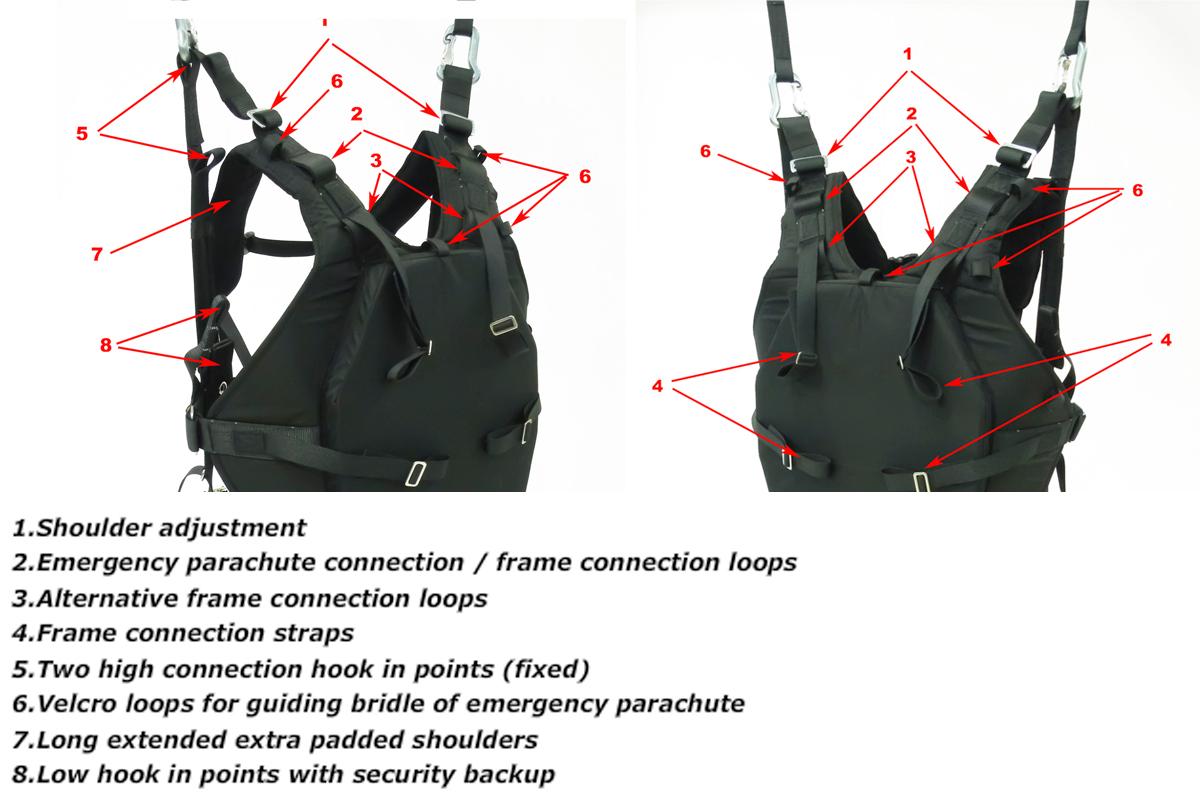

    • Will fit most frames – high and low hook up points
    • Quick-lock buckle system
    • Adjustable seat angle – adjustable during flight
    • Shoulder adjustment

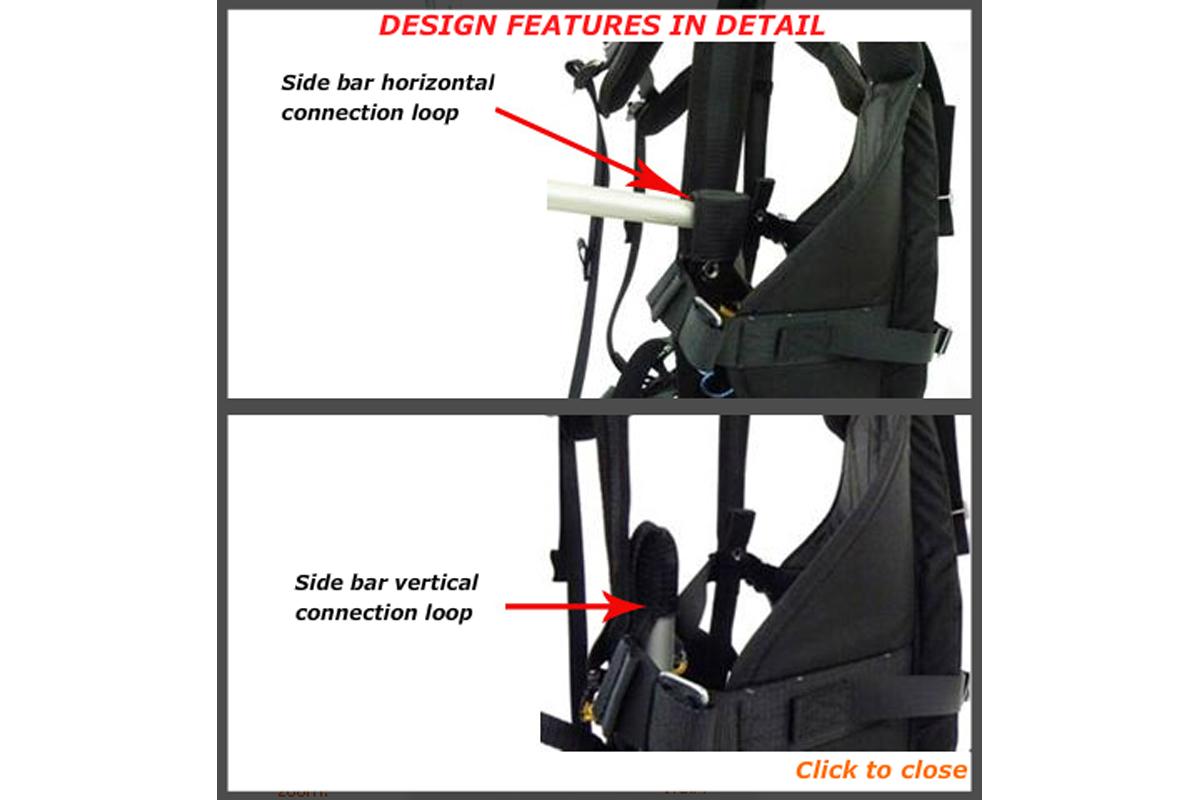

    • Emergency parachute connection / frame connection loops
    • Alternative frame connection loops
    • Frame connection straps
    • Two high connection hook in points (fixed)
    • Velcro loops for guiding bridle of emergency parachute
    • Long extended extra padded shoulders
    • Low hook in points with security backup

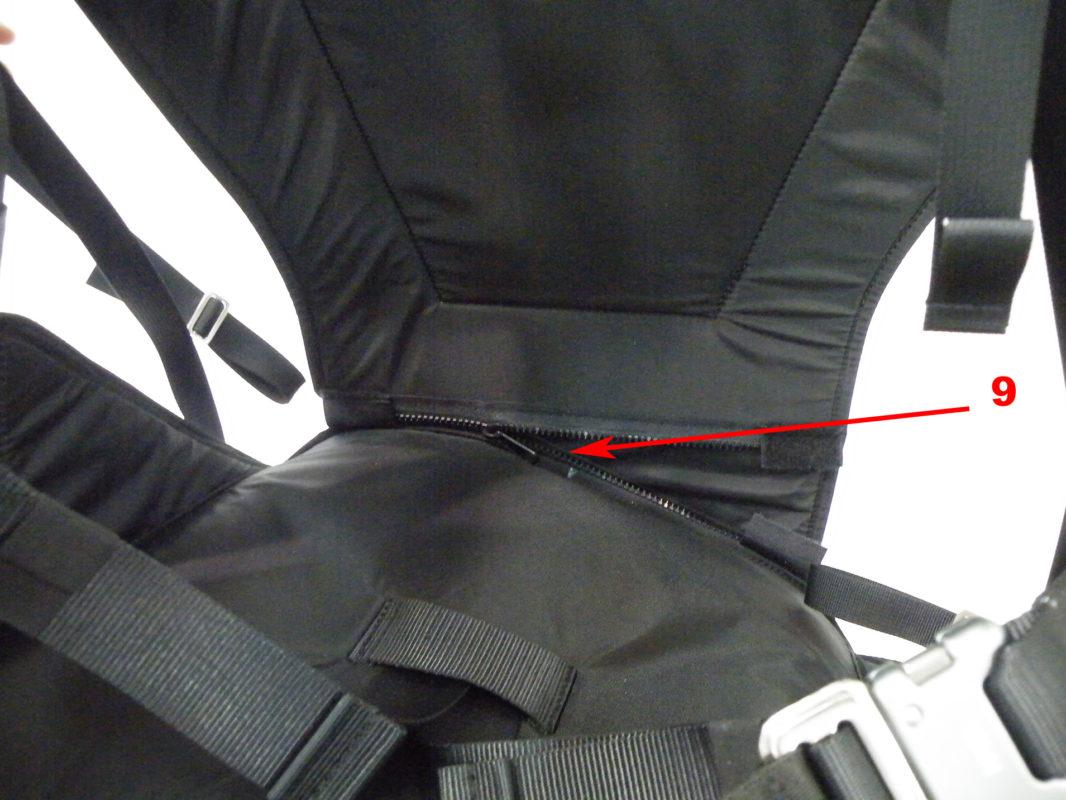

    • Size extender zipper
    • Weight: 2.7 Kg
    • Customizing Universal Paramotor Harness design
    Weight
    Harness2.700 [Kg]
    Seat Plate0.400 [Kg]
    Total3.100 [Kg]

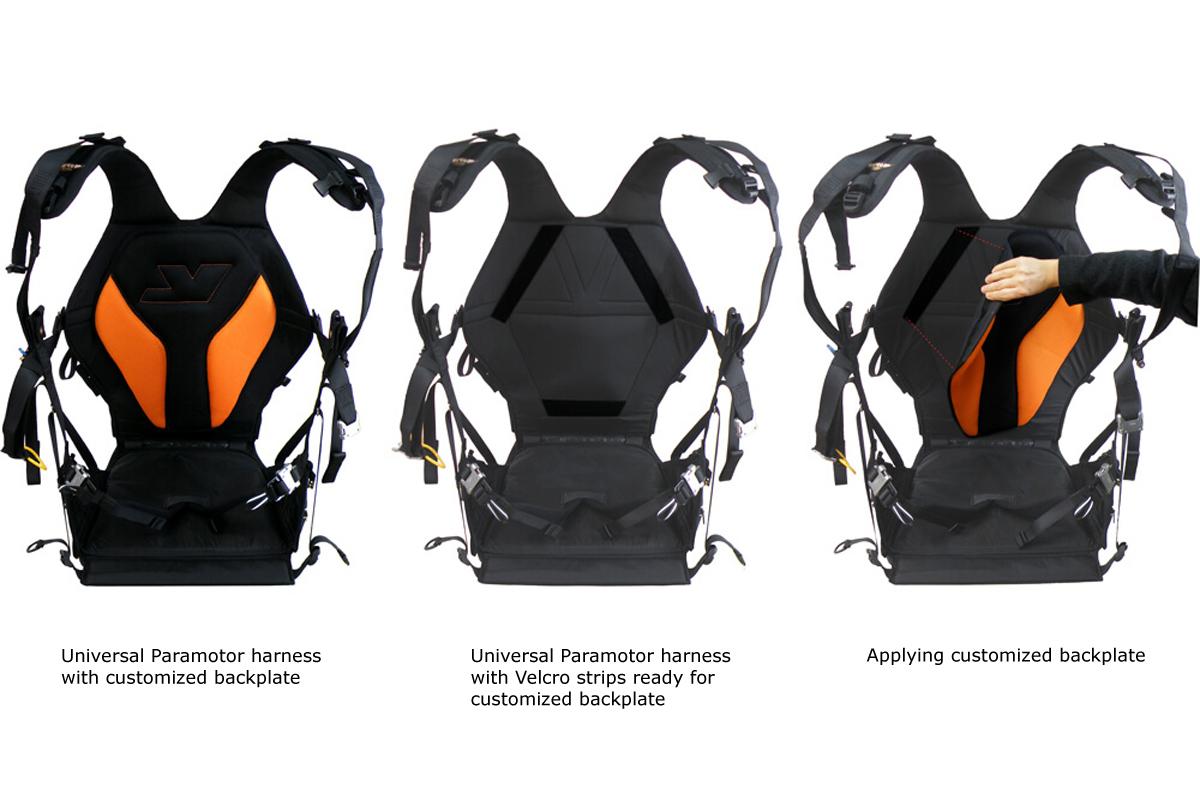

    The Universal Paramotor Harness is available in one standard color – All Black – body and webbing.
    It is prepared to accept a customized padded and/or airmeshed backplate.
    Additional Velcro strip sewn into the back of the harness designed to accept various backplates. Different optional standard design backplates available. They couple with the harness by simple strip of Velcro. The backplate can be easily peeled off or stuck on again. If dirty, can wash separately. If you are tired of it, can be replaced, or switched to match your wing. The backplate is not only attractive, but also cushions your back for extra comfort. You will definitely notice the difference in comfort.

    Custom back-plates available for bulk orders – contact us for more information

    APCO sells various sizes of it’s world famous MayDay parachute, compatible with the specifically designed Emergency parachute compartment which can be Zipped on and off either side of the harness and is interchangeable with a zipped on Pocket.
    Optional Airbag will provide additional protection in case of impact with the ground.
    More information is available in the Options Tab

    Pilot Protection

    The optional airbag provides additional protection in case of impact with the ground.
    More information is available in the accessories section

    Reserve System

    Reserve System

    The Optional zip-on side mounted reserve container system for this harness integrates seamlessly into your setup, and provides peace of mind knowing you are flying with a rescue system.

    Frequently Asked Questions:

    Send us your questions: Contact us

    Optional Accessories

    Harnesses – Sizing Table

    HarnessSizeCodeHarness Weight [Kg]*Pilot Size (cm)Back Length (mm) - ASeat Length (mm) - BSeat Width (mm) - CDist. between Karabiners (mm)- DSupported Back (mm) - EHook-in Height (mm) - FPod Length - G
    First IIIMultisize with
    zipper expander
    481332.145 (incl.)140-190
    Hikeone size470301.300 (incl.)160 to 190610430230 x 2295 - 490320420
    Chairbag Integral Vone size460303.240 (incl.)160-185700390380385 - 575450430
    RitmaS/M450503.900 (incl.)Up to 170680400390420 - 615360420
    RitmaL/XL451004.000 (incl.)170-185750435400420 - 615400415
    RitmaXXL451504.100 (incl.)180 and up750435400420 - 615400405
    Spark IIS/M431025.120 (incl.)Up to 170740370350375 - 575400390
    Spark IIL/XL432025220 (incl.)170-185775410390375 - 575420415
    Spark IIXXL433025320 (incl.)180 and up790470400375 - 575420440
    KittoS / M443102710 (incl.)up to 185
    KittoL / XL443202840 (incl.)**180 - 205
    Swift RaceM/L446105.950 (incl.)up to 190640410320395 - 540360440900 - 1000
    Swift RaceXL446206.150 (incl.)185 and up700460340360 - 5353704801000 - 1100
    Swift SportM/L446305.310 (incl.)up to 190640410320395 - 540360440900 - 1000
    Swift SportL/XL446355.510 (incl.)185 and up700460340360 - 5353704801000 - 1100
    Swift ZeroM/L446404910 (incl.)up to 190640410320395 - 540360440900 - 1000
    Swift ZeroL/XL446455.110 (incl.)185 and up700460340360 - 5353704801000 - 1100
    2 Lightone size426101.300 (incl.)160 to 190610430230 x 2295 - 490320420
    Tandem Pilot Harnessone size424004.500 (incl.)Up to 195
    Tandem Passenger Harnessone size425003.300 (incl.)a wide range
    of passenger sizes
    Split Legs Paramotor
    HIGH Hook-In points
    S/M with
    zipper extender
    434001.590 (incl.)Up to 185600/660260230x2340-500380/440600/690
    Split Legs Paramotor
    HIGH Hook-In points
    L/XL with
    zipper extender
    434101.590 (incl.)185 and up630/690/750300260x2320-530420/480/540620/710
    Split Legs Paramotor
    LOW Hook-In points
    S/M with
    zipper extender
    435001.590 (incl.)Up to 185600/660260230x2340-500380/440420/480
    Split Legs Paramotor
    LOW Hook-In points
    L/XL with
    zipper extender
    435101.590 (incl.)180 and up630/690/750300260x2320-530420/480/540420/480/540
    Universal ParamotorMultisize with
    zipper extender
    410153.100 (incl.)Up to 190630/690430390240-640440/500460/680/750
    SLT Paramotor Harness
    High Hook-Up points
    Multisize with
    zipper extender
    280152.550 (incl.)Up to 190660/720400380360-610380/440590/680
    SLT Paramotor Harness
    Low Hook-Up points
    S/M with
    zipper extender
    4204252.495 (incl.)Up to 185660/720400380360-610380/440340/360
    SLT Paramotor Harness
    Low Hook-Up points
    L/XL with
    zipper extender
    4204262.495 (incl.)180 and up660/720400380360-610380/440340/360
    Trike Pilotone size491002.850 (incl.)160-190690330+9043050360420-580
    Trike Passengerone size492502.100 (incl.)160-190600340410510330350
    *Harness weight denotes the total weight of the harness including Standard parts supplied with the harness such as; Seat Plate, Airfoam Protector, vibration foam (PM harnesses), and if relevant, the optional Lexan Plate.
    It excludes other optional accessories such as Cockpits, Stirrups, reserve parachutes, zip-on side pickets/reserve containers etc.
    **Estimated Weight
    • The paramotor harness is available in “one size fits all” – with zipper expander (zipper closed S/M size, zipper open L/XL size)
    • 41015 – UNIVERSAL PARAMOTOR HARNESS
    • 410151 – Backplate #1 Orange
    • 410152 – Backplate #2 Black
    • 410153 – Backplate #3 Red
    • 410154 – Backplate #4 Orange
    • 410156 – Backplate #6 Orange
